Vehicle Info NeededWILWOODPART NUMBER: 950-140-15845

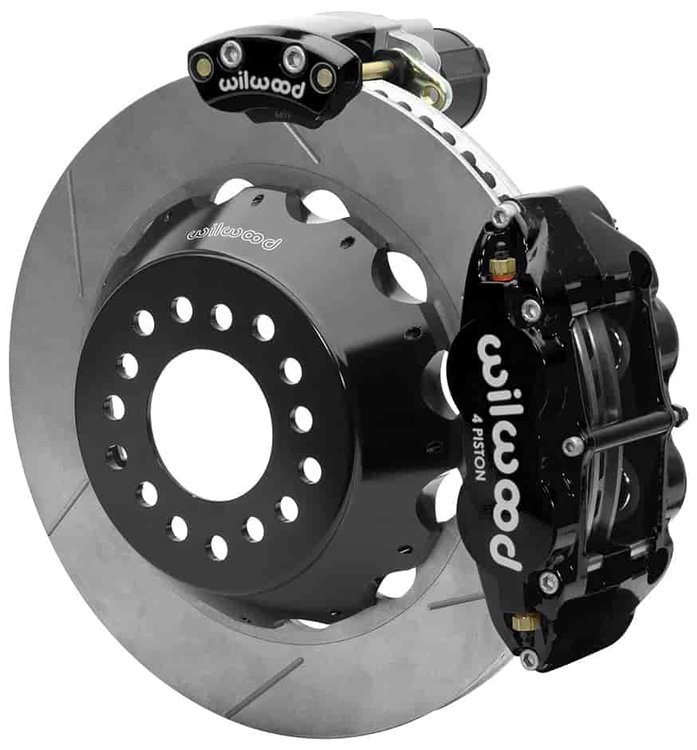

Forged Narrow Superlite 4R Big Brake Rear Electronic Parking Brake Kit for Ford 9 Inch
$3,59935
Ships on Sep 15, 2026
Lowest Price GuaranteeFordWith Electronic Parking Brake
Forged Narrow Superlite 4R Big Brake Kit Rear End Axle: Ford 9 in. with Big Ford New Style Ends Axle Offset: 2.500 in. 4 Piston Caliper (Black Powdercoat) 14 in. GT Slotted Two-Piece rotor 18 in. Minimum Wheel Diameter Kit
How to Measure Axle Offset & Rear End Housing Flange
Features:
- EPB (electronic parking brake) system requires zero cables or actuators
- 2400 plus pounds of clamping force with zero voltage or amp draw after actuated
- Kits designed to use 5 x 4.500 in., 5 x 4.750 in. or 5 x 5.000 in. bolt patterns
- Includes BP-10 compound pads for superior grip, longer wear, and lower dust
Part TypeBrake Conversion Kit
BrandWILWOOD
Package Height15.5
Package Width15.75
Package Length16.0
Weight74.0 PG
Part CategoryPerformance Parts
Hardware IncludedYes
Rear Caliper FinishBlack powdercoated
Front Caliper IncludedNo
Rear Rotor Thickness1.1 in (27.9 mm)
Minimum Recommended Wheel Diameter18 in (457.2 mm)
Parking Brake ProvisionYes
Rear Rotor Diameter14.00 in./355.6mm
Rear Caliper MaterialBillet aluminum
Master Cylinder IncludedNo
Brackets IncludedYes
Rear Rotor ConstructionGT 72 curved vane
Rear Rotor IncludedYes
PositionRear
Brake Pads IncludedYes
Rear Rotor StyleSlotted surface
Brake Booster IncludedNo
Disc Brake Caliper (Rear) Piston QuantityFour
QuantitySold as a kit
Mounting Hardware IncludedYes
Offset2.5 in (63.5 mm)
Disc Brake Kit TypeHeavy-duty
Front Spindles IncludedNo
Brake Lines IncludedYes
Part FitmentSemi Universal
Parking Brake StyleElectronic Parking Brake
Front Rotor IncludedNo
Brake Pad MaterialBP-10 Compound
Rear Caliper IncludedYes
Vendor Part Number140-15845
Package Qty1
Package TypeEA
