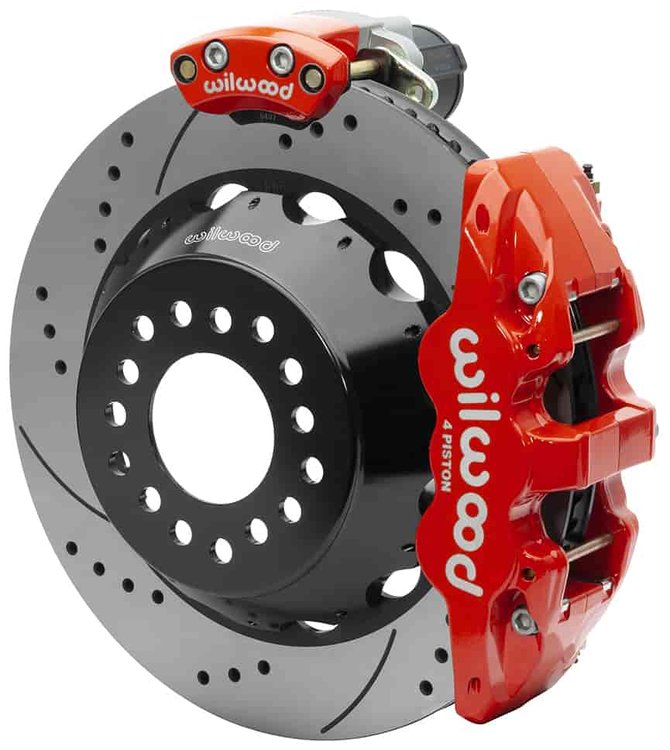

AERO4 Big Brake Rear Electronic Parking Brake Kit for Ford 9 Inch Rear End
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-140-15846-DR

AERO4 Big Brake Rear Electronic Parking Brake Kit for Ford 9 Inch Rear End

$3,74373
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

Ford
AERO4 Big Brake Rear Electronic Parking Brake Kit
  • Rear End Axle: Ford 9 in. with Big Ford New Style Flange
  • Axle Offset: 2.500 in.
  • 4 Piston Caliper (Red Powdercoat)
  • 14 in. Drilled and Slotted Rotor
  • 18 in. Minimum Wheel Diameter

    How to Measure Axle Offset & Rear End Housing Flange

    Breakdown of Included Items

    Features:

    • EPB (electronic parking brake) system requires zero cables or actuators
    • 2400 plus pounds of clamping force with zero voltage or amp draw after actuated
    • Kits designed to use 5 x 4.500 in., 5 x 4.750 in. or 5 x 5.000 in. bolt patterns
    • Includes BP-20 compound pads for superior grip, longer wear, and a wider operating temperature over the BP-10 pad
    • Part TypeBrake Conversion Kit
    BrandWILWOOD
    Package Height15.5
    Package Width15.75
    Package Length16.0
    Weight80.0 PG
    Part CategoryPerformance Parts
    Hardware IncludedYes
    Rear Caliper FinishRed powdercoated
    Rear Rotor Thickness1.1 in (27.9 mm)
    Minimum Recommended Wheel Diameter18 in (457.2 mm)
    Parking Brake ProvisionYes
    Rear Rotor Diameter14.00 in./355.6mm
    Rear Caliper MaterialBillet aluminum
    Master Cylinder IncludedNo
    Brackets IncludedYes
    Rear Rotor IncludedYes
    PositionRear
    Brake Pads IncludedYes
    Rear Rotor StyleCross-drilled/Slotted surface
    Brake Booster IncludedNo
    Disc Brake Caliper (Rear) Piston QuantityFour
    QuantitySold as a kit
    Mounting Hardware IncludedYes
    Offset2.5 in (63.5 mm)
    Disc Brake Kit TypeHeavy-duty
    Brake Lines IncludedNo
    Part FitmentSemi Universal
    Parking Brake StyleElectronic Parking Brake
    Brake Pad MaterialBP-20 Compound
    Rear Caliper IncludedYes
    Vendor Part Number140-15846-DR
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
