![Superlite 6R Big Brake Front Brake Kit 1963-1987 Chevy C10/C15 Pickup Truck, Plain Rotors [Red Powder-Coated Calipers]](https://www.jegs.com/images/mini_750/900/950/950-140-15940-r.jpg)
Vehicle Info NeededWILWOODPART NUMBER: 950-140-15940-R

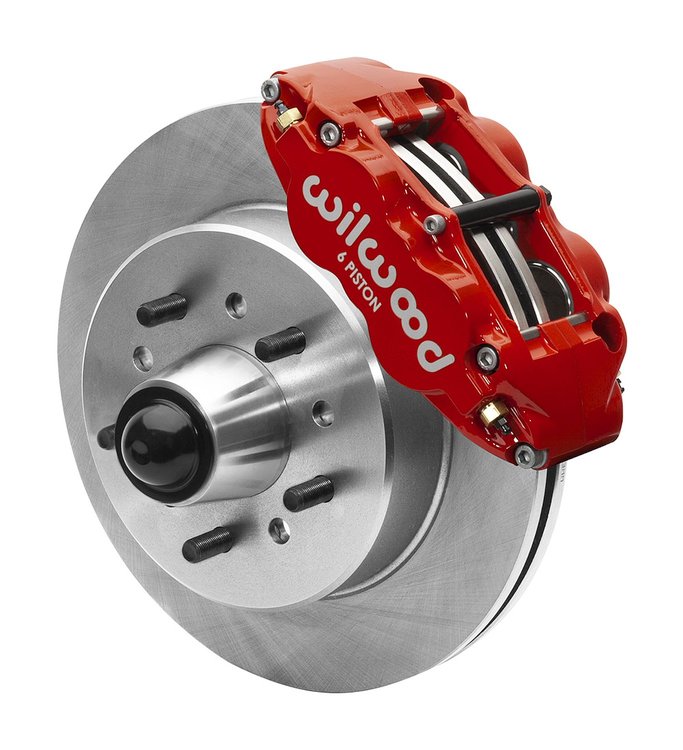

Superlite 6R Big Brake Front Brake Kit 1963-1987 Chevy C10/C15 Pickup Truck, Plain Rotors [Red Powder-Coated Calipers]
$1,41163
Ships Tomorrow
Lowest Price GuaranteeGM
Superlite 6R Big Brake Front Brake Kit1963-1987 Chevy C10/C15 Pickup Truck For Wilwood Drop Spindles 5 x 4.750 in. / 5 x 5 in. Bolt Circle 12.190 in. Plain Rotors Red Powder-Coated Calipers
Breakdown of Included Items for Wilwood 140-15940-R
Features:
- Six-piston calipers for increased brake capacity
- High-performance street-compound brake pads with medium friction
- +0.410 hub offset moves the wheels outward from the fender on each side of the vehicle
- Compatible with OE master cylinder output and anti-lock brake system (ABS) functions
Notes:
- Designed to fit Wilwood one-piece iron drop pro spindles - Will NOT fit OE spindles
- Requires the use of a 15 in. or larger wheel diameter
- Required Brake Line Kits 950-220-7056, or 950-220-11237
Part TypeBrake Conversion Kit
BrandWILWOOD
Package Height13.88
Package Width13.88
Package Length16.62
Weight70.0 PG
Part CategoryPerformance Parts
Front Rotor ConstructionIron
PositionFront
Front Rotor StyleSolid surface
Brake Pads IncludedYes
Front Caliper IncludedYes
Brake Booster IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Offset+0.41
Disc Brake Caliper (Front) Piston QuantitySix
Front Spindles IncludedNo
Front Rotor Diameter12.19 in./309.6mm
Brake Lines IncludedNo
Front Caliper FinishRed powdercoated
Master Cylinder IncludedNo
Reservoir IncludedNo
Front Rotor IncludedYes
Front Rotor Thickness1.1 in (27.94 mm)
Brake Pad MaterialBP-10 Compound
Vendor Part Number140-15940-R
Package Qty1
Package TypeEA
