Vehicle Info NeededWILWOODPART NUMBER: 950-140-15940

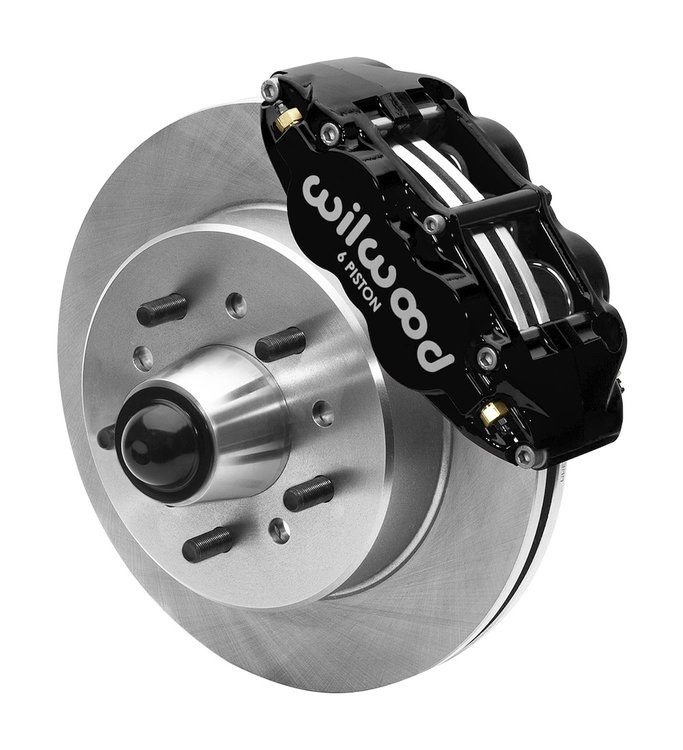

Superlite 6R Big Brake Front Brake Kit 1963-1987 Chevy C10/C15 Pickup Truck, Plain Rotors [Black Powder-Coated Calipers]
$1,41163
Ships on Sep 15, 2026
Lowest Price GuaranteeGM
Superlite 6R Big Brake Front Brake Kit1963-1987 Chevy C10/C15 Pickup Truck For Wilwood Drop Spindles 5 x 4.750 in. / 5 x 5 in. Bolt Circle 12.190 in. Plain Rotors Black Powder-Coated Calipers
Breakdown of Included Items for Wilwood 140-15940
Features:
- Six-piston calipers for increased brake capacity
- High-performance street-compound brake pads with medium friction
- +0.410 hub offset moves the wheels outward from the fender on each side of the vehicle
- Compatible with OE master cylinder output and anti-lock brake system (ABS) functions
Notes:
- Designed to fit Wilwood one-piece iron drop pro spindles - Will NOT fit OE spindles
- Requires the use of a 15 in. or larger wheel diameter
- Required Brake Line Kits 950-220-7056, or 950-220-11237
An Effective Combination of Braking Power and Style
Wilwood Narrow Superlite 6R Big Brake Front Brake Kits include billet forged six-piston calipers and oversized one-piece rotors for performance braking on American muscle cars and classic vehicles. Specifically for use with 15-inch and larger wheels, these kits enhance tire and suspension upgrades on all types of custom show and high-performance street and strip machines.
Part TypeBrake Conversion Kit
Product LineWilwood Narrow Superlite 6R Front Brake Kits (1-Piece Rotors)
BrandWILWOOD
Package Height14.3
Package Width15.0
Package Length17.6
Weight65.0 PG
Part CategoryPerformance Parts
Front Rotor ConstructionIron
PositionFront
Front Rotor StyleSolid surface
Brake Pads IncludedYes
Front Caliper IncludedYes
Brake Booster IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Offset+0.41
Disc Brake Caliper (Front) Piston QuantitySix
Front Spindles IncludedNo
Front Rotor Diameter12.19 in./309.6mm
Brake Lines IncludedNo
Front Caliper FinishBlack powdercoated
Master Cylinder IncludedNo
Brackets IncludedYes
Reservoir IncludedNo
Front Rotor IncludedYes
Front Rotor Thickness1.1 in (27.94 mm)
Brake Pad MaterialBP-10 Compound
Vendor Part Number140-15940
Package Qty1
Package TypeEA
