Vehicle Info NeededWILWOODPART NUMBER: 950-140-15949-D

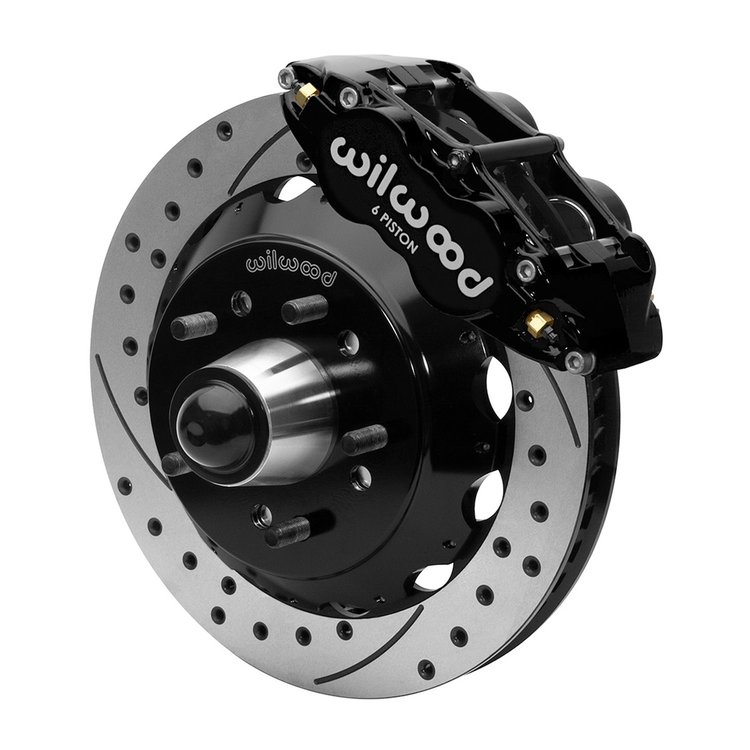

Superlite 6R Front Big Brake Kit 1988-1998 Chevy/GMC C1500 Wilwood Drop Spindle
$2,28854
Ships on 09/14/2026
Lowest Price GuaranteeGM
Superlite 6R Front Brake Kit1988-1998 Chevy/GMC C1500 2WD Pickup Truck & SUV 5 x 4.750 / 5 x 5 Lug Pattern For Wilwood Drop Spindles 13.060 in. Drilled/Slotted Vented Rotors Black Powder Coated Calipers
The Wilwood 140-15949-D Superlite 6R big brake upgrade kit with drilled and slotted rotors is made specifically for your 1988-1998 2WD GM pickup truck or SUV with Wilwood drop spindles. They will not fit stock spindles.
Note:
- This brake kit requires the use of a 17 in. or larger wheel.
Part TypeBrake Conversion Kit
BrandWILWOOD
Package Height15.5
Package Width15.75
Package Length16.0
Weight64.0 PG
Part CategoryPerformance Parts
PositionFront
Brake Pads IncludedYes
Front Caliper IncludedYes
Brake Booster IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Disc Brake Caliper (Front) Piston QuantitySix
Parking Brake ProvisionNo
Front Spindles IncludedNo
Front Rotor Diameter13.06 in./331.7mm
Brake Lines IncludedNo
Master Cylinder IncludedNo
Brackets IncludedYes
Front Rotor IncludedYes
Front Rotor Thickness1.25 in (31.75 mm)
Vendor Part Number140-15949-D
Package Qty1
Package TypeEA
