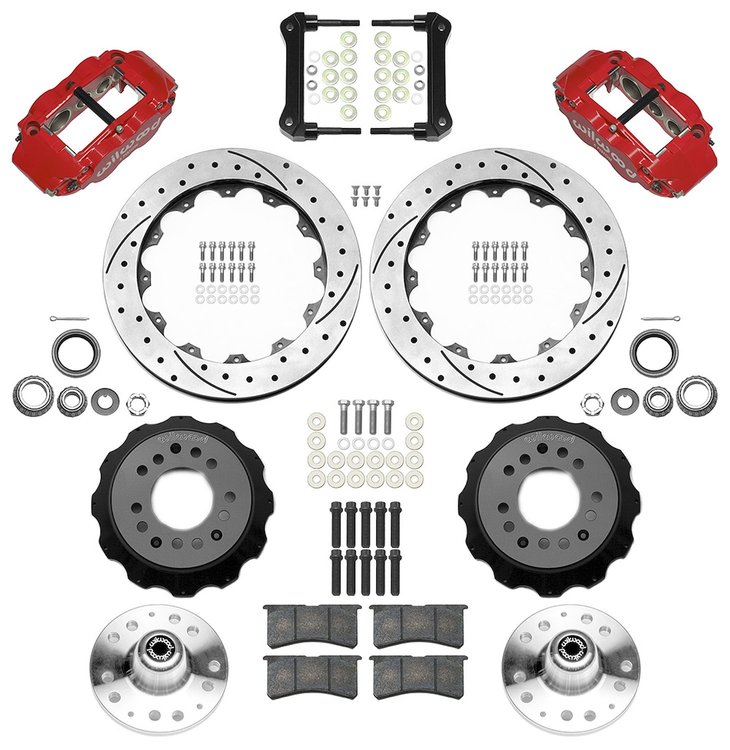

140-15982-DR Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-140-15982-DR

140-15982-DR Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)

$2,27479
ShippingShips on 09/14/2026
Lowest PriceLowest Price Guarantee

    Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
  • 2nd Gen Pro Spindle
  • 70- 81 F Bod
  • 75-79 Aandx Bod
  • 12.88 Rtr
  • SRP Drilled And Slotted Rotors
  • Red

    Wilwood 140-15982-DR Features:

    FNSL6R billet forged six-piston calipers with 12.88in rotors deliver the ultimate combination for braking power and style re designed for the WWE AFX Pro spindles. AFX Pro Spindles fit 1964-1972 GM A Body, 1967-1969 GM F Body, 1968-1974 GM X Body vehicles and are built exclusively for 17 in. and larger wheels, FNSL6R kits used with WWE AFX Pro Spindles enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

Part TypeDisc Brake Kit
BrandWILWOOD
Package Height15.5
Package Width15.75
Package Length16.0
Weight57.0 PG
Part CategoryPerformance Parts
Caliper Piston Quantity6
Hub IncludedNo
Solid Or Vented Type RotorVented
Caliper TypeRadial
Caliper ColorRed
Brake Booster IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Rotor Outside Diameter12.88 in.
Rotor Thickness1.10 in.
Length Pintle RetrievedFront Kits
Wheel Stud Size0.520 in.
Spindle IncludedNo
Bolt Circle Diameter5 x 4.5 in., 5 x 4.75 in.
Component TypeFront Brake Kits - Street Performance
Brake TypeDisc
Minimum Wheel Diameter17 in.
Brake Lines IncludedNo
Piston MaterialStainless
Surface TypeSRP Drilled & Slotted
Master Cylinder IncludedNo
Part FitmentSemi Universal
Caliper FinishRed Powder Coat
Rotor MaterialSpec-37 Iron
Vendor Part Number140-15982-DR
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
