140-16026 AERO4 Big Brake Truck Rear Brake Kit
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-140-16026

140-16026 AERO4 Big Brake Truck Rear Brake Kit

$2,16126
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

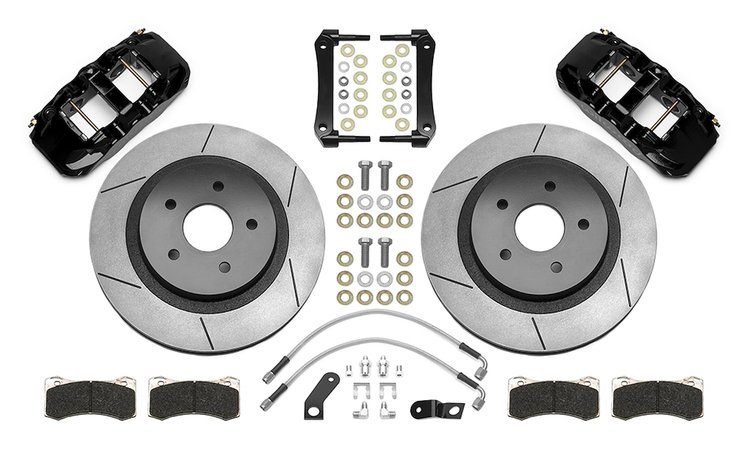

    AERO4 Big Brake Truck Rear Brake Kit
  • Ram Truck 1500 Series 2013-18
  • 15.00 Rotor
  • W/Lines

    Wilwood 140-16026 Features:

    AERO4 Big Brake rear axle kits for 2013 to 2017 for Ram 1500 Trucks replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrade kit. High capacity braking from the Aero4 calipers, BP-20 compound pads, and oversized 15.00in rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on vehicles with increased brake requirements from high GVW. Kit comes complete with stainless braided flex lines.

Part TypeDisc Brake Kit
BrandWILWOOD
Package Height7.75
Package Width16.37
Package Length16.37
Weight96.0 PG
Part CategoryPerformance Parts
Caliper Piston Quantity4
Caliper TypeRadial
Rotor Outside Diameter15.00 in.
Rotor Thickness1.25 in.
Wheel Stud Size0.65 in.
Spindle IncludedNo
Component TypeRear Brake Kits - Street Performance
Master Cylinder IncludedNo
Caliper FinishBlack Powder Coat
Hub IncludedNo
Solid Or Vented Type RotorVented
Brake Hose Dot ApprovedYes
Caliper ColorBlack
Brake Booster IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Length Pintle RetrievedRear Kits
Bolt Circle Diameter5 X 5.5 in.
Flange TypeOEM
Brake TypeDisc
Minimum Wheel Diameter19 in.
Brake Lines IncludedYes
Piston MaterialStainless
Surface TypeGT Slotted
Part FitmentSemi Universal
Flange Offset0.00 in.
Rotor MaterialIron
Vendor Part Number140-16026
Package Qty1
Package TypeEA
