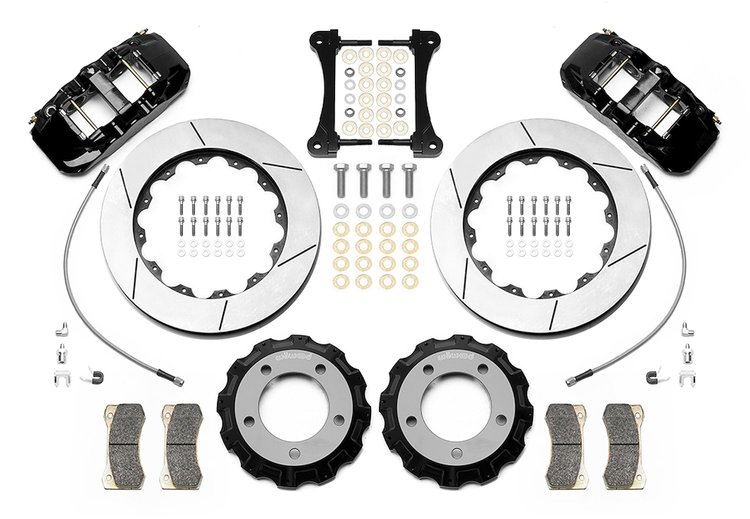

140-16046 AERO6 Big Brake Truck Front Brake Kit
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-140-16046

140-16046 AERO6 Big Brake Truck Front Brake Kit

$2,71699
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

    AERO6 Big Brake Truck Front Brake Kit
  • Toyota
  • Lc200
  • 16-18 14.25 Rotor
  • W/Lines

    Wilwood 140-16046 Features:

    The AERO6-DS 140-16046 Big Brake Kit for 2016 to 2018 for Toyota Land Cruiser (J200) and Lexus ZLX570. Featuring Aero 6 Dust Seal Calipers, Large 14.25 in. 2 piece slotted rotorsand BP20 Smart Pads, the 140-16046 is designed for ultimate performance and show. This Aero 6 kit is for use with 18in or larger wheels and is at home on any street in the world. AERO6-DS calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.25 in. rotors provide maximum cooling for sustained high heat durability. Aero6 Dust Boot calipers incorporate an exclusive dust wiper seal that further protects the piston bore from dust and corrosion. Kit comes complete with stainless braided flex lines. Verify fitment on the Wilwood Website.

Part TypeDisc Brake Kit
BrandWILWOOD
Package Height15.5
Package Width15.75
Package Length16.0
Weight71.0 PG
Part CategoryPerformance Parts
Caliper Piston Quantity6
Caliper TypeRadial
Rotor Outside Diameter14.25 in.
Rotor Thickness1.25 in.
Wheel Stud Size0.640 in.
Spindle IncludedNo
Component TypeFront Brake Kits - Street Performance
Master Cylinder IncludedNo
Caliper FinishBlack Powder Coat
Hub IncludedNo
Solid Or Vented Type RotorVented
Brake Hose Dot ApprovedYes
Caliper ColorBlack
Brake Booster IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Length Pintle RetrievedFront Kits
Bolt Circle Diameter5 x 5.91 in.
Brake TypeDisc
Minimum Wheel Diameter18 in.
Brake Lines IncludedYes
Piston MaterialStainless
Surface TypeGT Slotted
Part FitmentSemi Universal
Rotor MaterialSpec-37 Iron
Vendor Part Number140-16046
Package Qty1
Package TypeEA
