140-16047 AERO4 Big Brake Truck Rear Brake Kit
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-140-16047

140-16047 AERO4 Big Brake Truck Rear Brake Kit

$2,16126
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

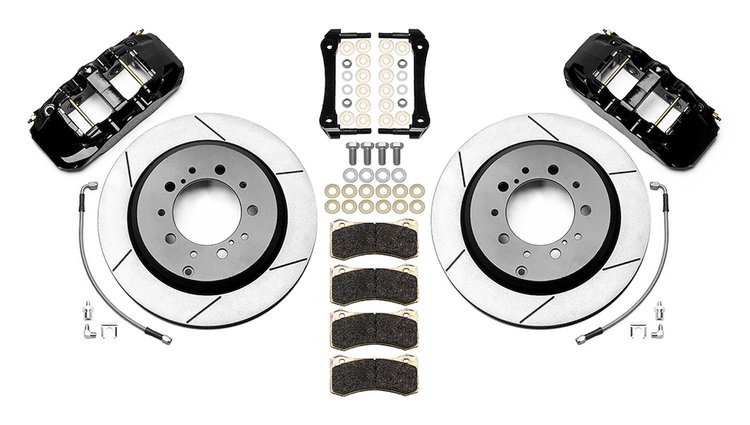

    AERO4 Big Brake Truck Rear Brake Kit
  • Toyota
  • Lc200
  • 16-18 14.50 Rotor
  • W/Lines

    Wilwood 140-16047 Features:

    AERO4-DS Big Brake rear axle kits for 2016 to 2018 for Toyota Land Cruiser (J200) and Lexus ZLX570 replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrade kit. High capacity braking from the Aero4 Dust Boot calipers incorporate an exclusive dust wiper seal that further protects the piston bore from dust and corrosion. BP-20 compound pads, and oversized 14.50in rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on vehicles with increased brake requirements from high GVW. Kit comes complete with stainless braided flex lines.

Part TypeDisc Brake Kit
BrandWILWOOD
Package Height15.5
Package Width15.75
Package Length16.0
Weight81.0 PG
Part CategoryPerformance Parts
Caliper Piston Quantity4
Caliper TypeRadial
Rotor Outside Diameter14.50 in.
Rotor Thickness1.10 in.
Wheel Stud Size0.64 in.
Spindle IncludedNo
Component TypeRear Brake Kits - Street Performance
Master Cylinder IncludedNo
Caliper FinishBlack Powder Coat
Hub IncludedNo
Solid Or Vented Type RotorVented
Brake Hose Dot ApprovedYes
Caliper ColorBlack
Brake Booster IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Length Pintle RetrievedRear Kits
Bolt Circle Diameter5 X 5.91 in.
Flange TypeOEM
Brake TypeDisc
Minimum Wheel Diameter18 in.
Brake Lines IncludedYes
Piston MaterialStainless
Surface TypeGT Slotted
Part FitmentSemi Universal
Flange Offset0.00 in.
Rotor MaterialIron
Vendor Part Number140-16047
Package Qty1
Package TypeEA
