Vehicle Info NeededWILWOODPART NUMBER: 950-140-16138-DR

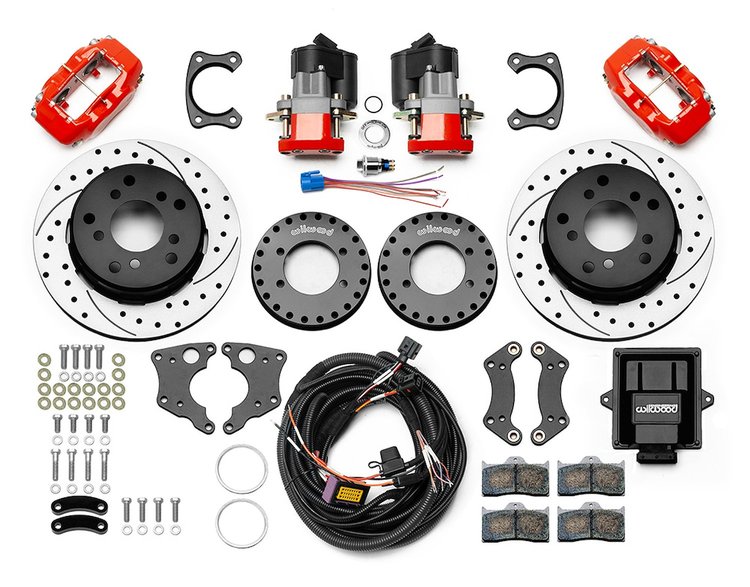

140-16138-DR Forged Dynalite Rear Electronic Parking Brake Kit
$2,43346
Ships Today
Lowest Price Guarantee- Forged Dynalite Rear Electronic Parking Brake Kit
- Big Ford
- 2.36 Offset
- 1-Piece
- 5X5.50 Bc
- 12.19 Rotor
- SRP Drilled And Slotted Rotors
- Red
Wilwood 140-16138-DR Features:
These FDL Pro-Series Rear EPB (Electric Parking Brake) Kits provide an innovative parking brake solution for popular car and truck rear axles. Forged billet aluminum Dynalite four piston calipers, 12.19 in. one-piece rotors, and high-friction pads provide balanced front/rear brake bias for all types of high-performance street machines. The unique EPB caliper provides secure parking with high-torque holding power, but simplifies installation with no mechanical cable connection needed. Comes complete with switch, indicator, control unit and harness assembly.
Part TypeDisc Brake Kit
BrandWILWOOD
Package Width60.0
Weight60.0 PG
Part CategoryPerformance Parts
Caliper Piston Quantity4
Caliper TypeLug
Rotor Outside Diameter12.19 in.
Rotor Thickness0.81 in.
Wheel Stud Size0.56 in., 0.64 in.
Spindle IncludedNo
Component TypeRear Brake Kits - Street Performance
Master Cylinder IncludedNo
Caliper FinishRed Powder Coat
Hub IncludedNo
Solid Or Vented Type RotorVented
Caliper ColorRed
Brake Booster IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Length Pintle RetrievedRear Kits
Bolt Circle Diameter5 x 4.5 in., 5 x 5.5 in.
Flange TypeBig Ford Bronco
Brake TypeDisc, Parking
Minimum Wheel Diameter15 in.
Brake Lines IncludedNo
Piston MaterialStainless
Surface TypeSRP Drilled & Slotted
Part FitmentSemi Universal
Flange Offset2.36 in.
Rotor MaterialIron
Vendor Part Number140-16138-DR
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
