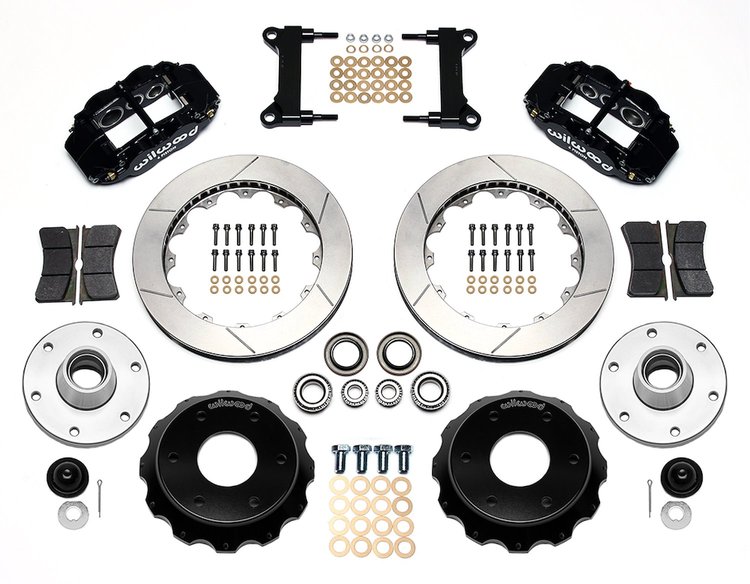

Wilwood 140-16457 Forged Narrow Superlite 6R Big Brake Front Brake Kit Includes:

• Forged Narrow Superlite 6R calipers – black powder coat finish, 6-piston design
• 14.00 in. diameter x 1.10 in. thick 2-piece rotors with GT slotted surface
• Spec-37 iron rotors with aluminum hats
• Wilwood BP-10 Smart Compound brake pads (dual-purpose street/track use)
• Caliper mounting brackets
• High-strength steel installation hardware

Wilwood 140-16457 Forged Narrow Superlite 6R Big Brake Front Brake Kit Features:

• Delivers high-performance braking for aggressive street and track driving
• Rotor design promotes heat dissipation, consistent bite, and fade resistance
• Forged calipers reduce weight and improve strength and pedal feel
• Modular 2-piece rotors reduce unsprung weight and support future upgrades
• Engineered for muscle cars, pro-touring builds, and custom applications
• Direct bolt-on kit – no major modifications required
• Perfect for vehicles demanding enhanced stopping power and visual appeal

Wilwood 140-16457 Forged Narrow Superlite 6R Big Brake Front Brake Kit Notes:

• Requires wheels that accommodate 14.00 in. rotors and 6-piston calipers
• Best results when paired with a matching Wilwood rear brake kit
• Professional installation recommended for optimal safety and performance

Wilwood 140-16457 Forged Narrow Superlite 6R Big Brake Front Brake Kit Fitment:

• Fits 1963–1987 Chevrolet C10 and C15 trucks with CPP 2 in. drop spindles (part numbers CP30106-2, -3, or -4)
• Fits 1963–1987 GMC C10 and C15 trucks with CPP 2 in. drop spindles (part numbers CP30106-2, -3, or -4)
• Compatible with aftermarket Ridetech 2 in. drop spindles (part numbers 11349300, 11359300, 11369300)
• Uses 6 x 5.50 in. (6 x 139.7 mm) bolt pattern
• Requires minimum 17 in. wheel diameter
• Check Wheel Clearance Diagram to confirm proper clearance
