Vehicle Info NeededWILWOODPART NUMBER: 950-140-16711-R

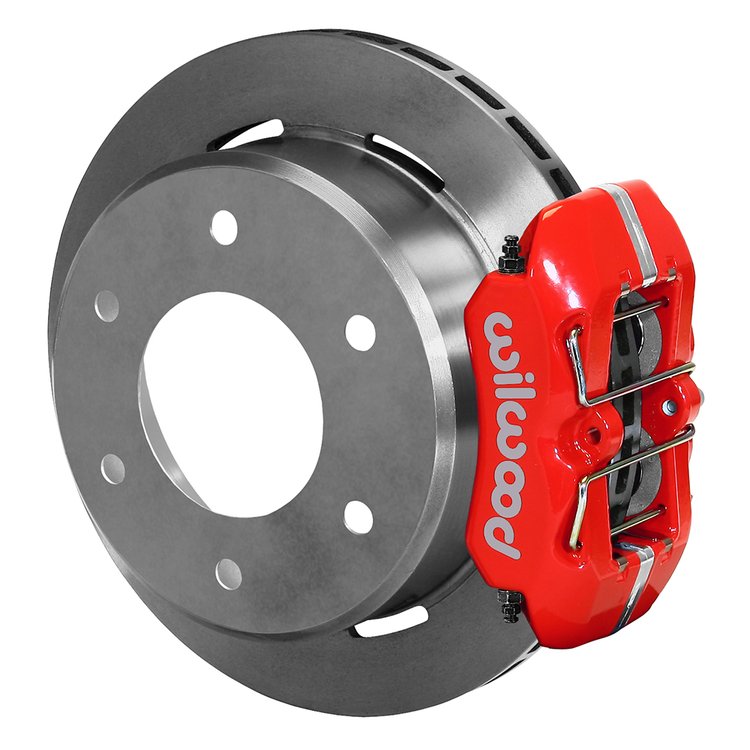

Forged Dynapro Low-Profile Rear Parking Brake Kit for 1963-1970 Chevy C10, GMC C15 2WD Truck
$1,20188
Ships on 09/16/2026
Lowest Price GuaranteeGM Truck
- Forged Dynapro Low-Profile Rear Parking Brake Kit
- 1963-1970 Chevy C10, GMC C15 2WD Truck
- 6 x 5.50 in. Bolt Pattern
- Axle Offset: 2.46 in.
- 4-Piston Dynapro Calipers (Red Powder-Coat)
- 11 in. Solid Vented Rotors
- 14 in. Min. Wheel Diameter
Axle Flange and Offset Dimensions
Wilwood 140-16711-R Forged Dynpro Low-Profile Rear Parking Brake Kit is a complete rear disc brake conversion kit with forged billet Dynapro four-piston calipers and solid faced rotors with a hidden drum-style internal parking brake system
Note: This kit may fit 14 in. wheels, refer to the Wheel Clearance Diagram to verify wheel fitment
Part TypeBrake Conversion Kit
BrandWILWOOD
Package Height13.88
Package Width13.88
Package Length16.62
Weight45.0 PG
Part CategoryPerformance Parts
Rear Caliper FinishRed powdercoated
PositionRear
Brake Pads IncludedYes
Rear Rotor StyleSolid surface
Disc Brake Caliper (Rear) Piston QuantityFour
QuantitySold as a Kit
Mounting Hardware IncludedYes
Rear Rotor Thickness0.81 in (20.6 mm)
Caliper SeriesDynapro Low Profile
Caliper LogoWilwood
Parking Brake ProvisionYes
Rear Rotor Diameter11.00 in./279.4mm
Wheel Bolt Pattern6 x 5.50 in.
Rear Caliper MaterialBillet aluminum
Brackets IncludedYes
Parking Brake StyleInternal drum
Brake Pad MaterialBP-10 Compound
Rear Rotor IncludedYes
Rear Caliper IncludedYes
Vendor Part Number140-16711-R
Package Qty1
Package TypeEA
