![TX6R Big Brake Front Brake Kit Fits Select Ram 1500 Trucks w/6 Lug Wheels 2WD/4WD [Black]](https://www.jegs.com/images/mini_750/900/950/950-140-16790.jpg)
Vehicle Info NeededWILWOODPART NUMBER: 950-140-16790

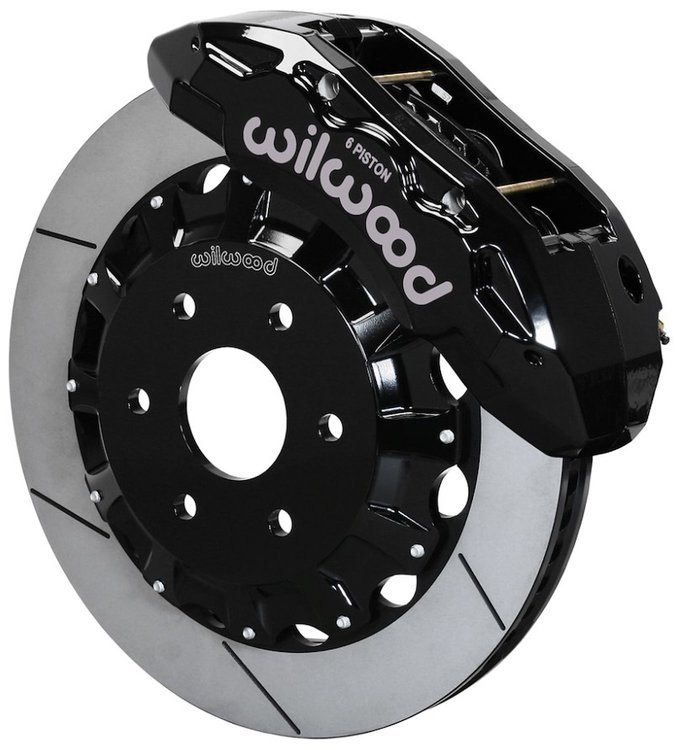

TX6R Big Brake Front Brake Kit Fits Select Ram 1500 Trucks w/6 Lug Wheels 2WD/4WD [Black]
$3,15798
Ships on 09/22/2026
Lowest Price GuaranteeRam
TX6R Big Brake Front Brake KitFits Select Ram 1500 Trucks 2WD/4WD 6 x 5.50 in. Lug Pattern 6-Piston Calipers Caliper Brackets GT Slotted Rotors Aluminum Rotor Hats Brake Pads Stainless Steel Brake Lines Black Pair
Wilwood 140-16790 TX6R Big Brake Front Brake Kit:
This TX6R Big Brake Kit is compatible with the factory master cylinder, ABS, and all electronic controls. It has the same Wilwood components as tactical armored vehicles, improves braking torque, and adds thermal stability from the large-diameter rotors.
Wilwood 140-16790 TX6R Big Brake Front Brake Kit Included Components:
- (1) TX6R Forged Radial Mount Left/Driver-Side Caliper 120-13818-BK in Black Powder-Coat
- (1) TX6R Forged Radial Mount Right/Passenger-Side Caliper 120-13817-BK in Black Powder-Coat
- (1) GT 60 Curved Vane Left/Driver-Side Rotor 160-8954-GTB in Electro-Coat Black
- (1) GT 60 Curved Vane Right/Passenger-Side Rotor 160-8953-GTB in Electro-Coat Black

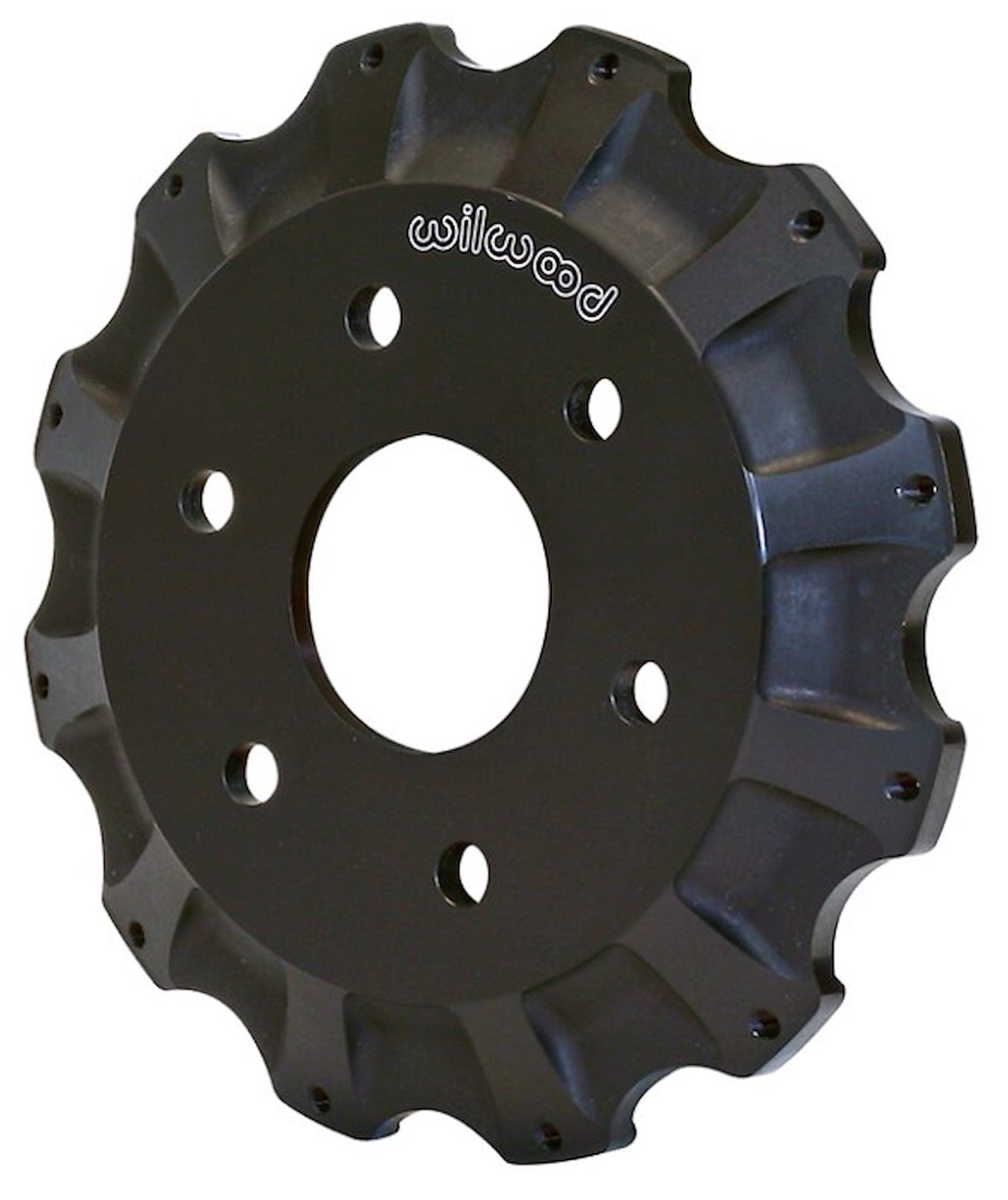

- (2) Aluminum Truck Rotor Hats 170-8960 in Electro-Coat Black
- (1) Set Brake Pads
- (2) Stainless Steel Flexible Brake Lines
- All Necessary Hardware
Powerful Big Brake Kits with Superb Durability
Wilwood's TX6R Big Brake Truck Brake Kits include a pair of TX6R calipers, GT curved vane rotors, and BP-20 metallic brake pads. With Wilwood's race-winning technology and the combination of parts, they are purpose-built to provide consistent braking and superb durability for trucks and SUVs with 20-inch and larger wheels. Wilwood engineered the TX6R Kits to work with the OE master cylinder and maintain the full function of the ABS.
Part TypeBrake Conversion Kit
Product LineWilwood TX6R Big Brake Truck Brake Kits
BrandWILWOOD
Package Height8.0
Package Width18.0
Package Length18.0
Weight100.0 PG
Part CategoryPerformance Parts
PositionFront
Front Rotor StyleSlotted surface
Front Caliper IncludedYes
QuantitySold as a Kit
Disc Brake Caliper (Front) Piston QuantitySix
Front Caliper MaterialAluminum
Front Spindles IncludedNo
Front Rotor Diameter16.00 in./406.4mm
Brake Lines IncludedYes
Front Caliper FinishBlack powdercoated
Front Rotor IncludedYes
Vendor Part Number140-16790
Package Qty1
Package TypeEA
