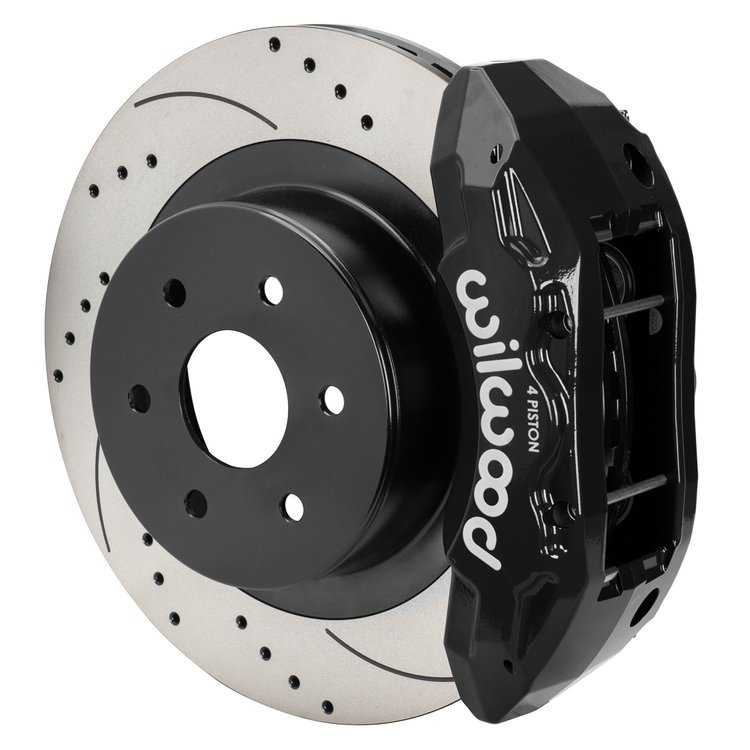

This Wilwood 140-16861-D TX4R Tactical Xtreme rear big brake kit for 1999-2018 GM 1/2 ton 2WD or 4WD trucks and SUVs complement Wilwood's Front Six-Piston Brake Kit 140-13876 (sold separately) for additional brake performance for street, all-terrain, towing, and even armored vehicles.

Wilwood 140-16861-D TX4R Big Brake Truck Rear Brake Kit Notes:

• Requires model-year-specific Wilwood flexible brake line kit (both sold separately):
  • 220-9886 for model years 1999-2006
  • 220-11196 for model years 2007-2018
• This brake kit may fit 20 in. wheels refer to the wheel clearance diagram wheel clearance requirements
• Compatible with vehicles equipped with factory single-piston rear calipers only
