140-17389-R Tactical Xtreme TX6R Six-Piston 16 in. Front Big Brake Kit Fits Select RAM 1500 TRX [Red]
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-140-17389-R

140-17389-R Tactical Xtreme TX6R Six-Piston 16 in. Front Big Brake Kit Fits Select RAM 1500 TRX [Red]

$3,15798
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

Ram
Tactical Xtreme TX6R 16 in. Front Big Brake Kit
  • Select RAM 1500 TRX
  • Fits Factory Disc Spindle

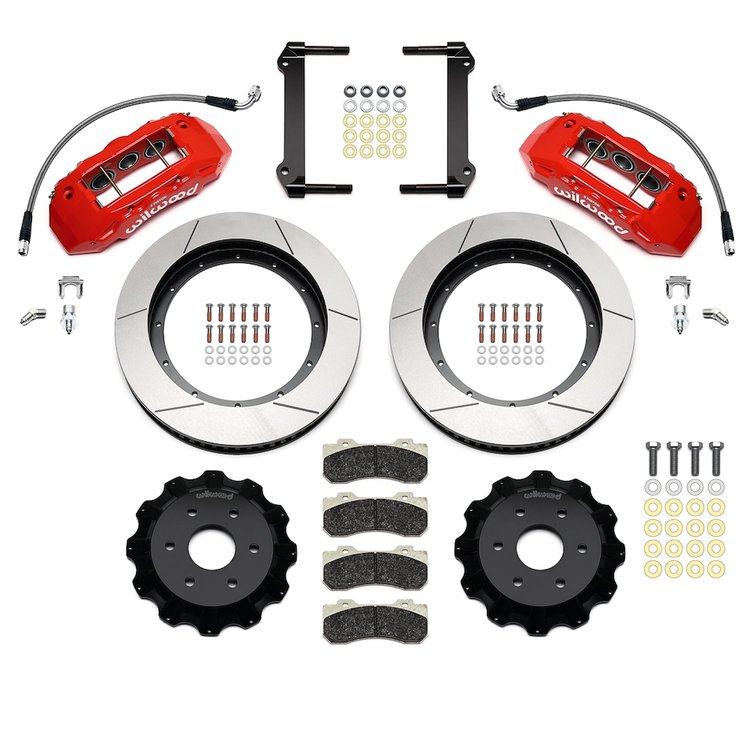

  • Includes:
    • Red TX6R Calipers
    • 16 in. Rotors
    • Brake Pads
    • Rotor Hats
    • Radial Mount Caliper Brackets
    • Installation Hardware

      Breakdown of Included Items

      Wheel Clearance Diagram

      Wilwood 140-17389-R Tactical Xtreme TX6R Six-Piston 16 in. Front Big Brake Kit Features:

      • Radial-mounted six-piston red powder-coated calipers
      • GT-60 Directional vane 16 in. slotted rotors constructed from Spec-37 Iron with a black e-coat finish
      • Aluminum rotor hats with a black e-coat finish
      • SmartPad BP-Q Ceramic Compound Brake Pads
      • Delivers consistent stopping power and extreme duty durability under high-heat conditions
      • Calipers are volume-matched for compatibility with the OEM power brake system output

      Wilwood 140-17389-R Tactical Xtreme TX6R Six-Piston 16 in. Front Big Brake Kit Notes:

      • 20 in. minimum wheel diameter required
      • Braided stainless steel flex lines will need to be purchased for some applications
    • Part TypeDisc Brake Kit
    BrandWILWOOD
    Package Height7.75
    Package Width16.37
    Package Length16.37
    Weight100.0 PG
    Part CategoryPerformance Parts
    Front Rotor ConstructionIron
    PositionFront - Left/Driver & Right/Passenger Sides
    Front Rotor StyleSlotted surface
    Front Caliper IncludedYes
    QuantitySold as a kit
    Minimum Recommended Wheel Diameter20 in (508 mm)
    Disc Brake Caliper (Front) Piston QuantitySix
    Front Caliper MaterialAluminum
    Front Spindles IncludedNo
    Front Rotor Diameter16.00 in./406.4mm
    Front Caliper FinishRed powdercoated
    Master Cylinder IncludedNo
    Part FitmentDirect Fit
    Front Rotor IncludedYes
    Rear Rotor IncludedNo
    Rear Caliper IncludedNo
    Vendor Part Number140-17389-R
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
