Vehicle Info NeededWILWOODPART NUMBER: 950-140-18194

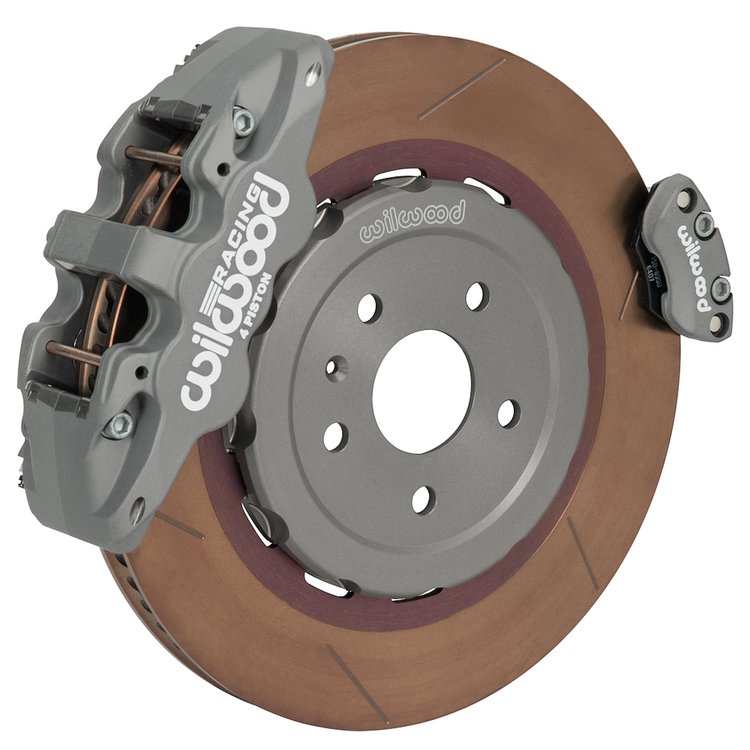

140-18194 AERO4 Big Brake Rear Lug Drive Electronic Parking Brake Kit (Race)
$4,84999
Ships on 09/16/2026
Lowest Price Guarantee- AERO4 Big Brake Rear Lug Drive Electronic Parking Brake Kit (Race)
- C8 Vette 2020-Up
- Road Race
- 15.00 Rotor
- Anodized
- W/Lines
Wilwood 140-18194 Features:
AERO4 Big Brake Dynamic Rear Electronic Parking Brake Kits (Race) provide the ultimate Big Brake solution for Super Car rear axles and an integrated electronic parking brake. AERO4 four piston calipers, 15.00” Dynamic Lug-Mount race-ready burnished rotors, and high-performance BP-30 compound pads provide optimized and balanced braking to complement front big brake road racing kits. The unique EPB (Electric Parking Brake) caliper provides high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use.
Part TypeDisc Brake Kit
BrandWILWOOD
Package Height7.75
Package Width16.38
Package Length16.38
Weight92.0 PG
Part CategoryPerformance Parts
Caliper Piston Quantity4
Caliper TypeRadial
Rotor Outside Diameter15.00
Rotor Thickness1.25
Spindle IncludedNo
Component TypeRear Brake Kits - Road Race
Master Cylinder IncludedNo
Caliper FinishType III Anodize
Hub IncludedNo
Solid Or Vented Type RotorVented
Brake Hose Dot ApprovedYes
Caliper ColorAnodize
Brake Booster IncludedNo
QuantitySold as a kit.
Mounting Hardware IncludedYes
Length Pintle RetrievedRear Kits
Bolt Circle Diameter5 x 4.72
Flange TypeOEM
Brake TypeDisc
Minimum Wheel Diameter19
Brake Lines IncludedYes
Recommended UseRoad Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
Piston MaterialThermlock
Surface TypeGT Slotted
Part FitmentDirect Fit
Rotor MaterialSpec-37 Iron
Vendor Part Number140-18194
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
