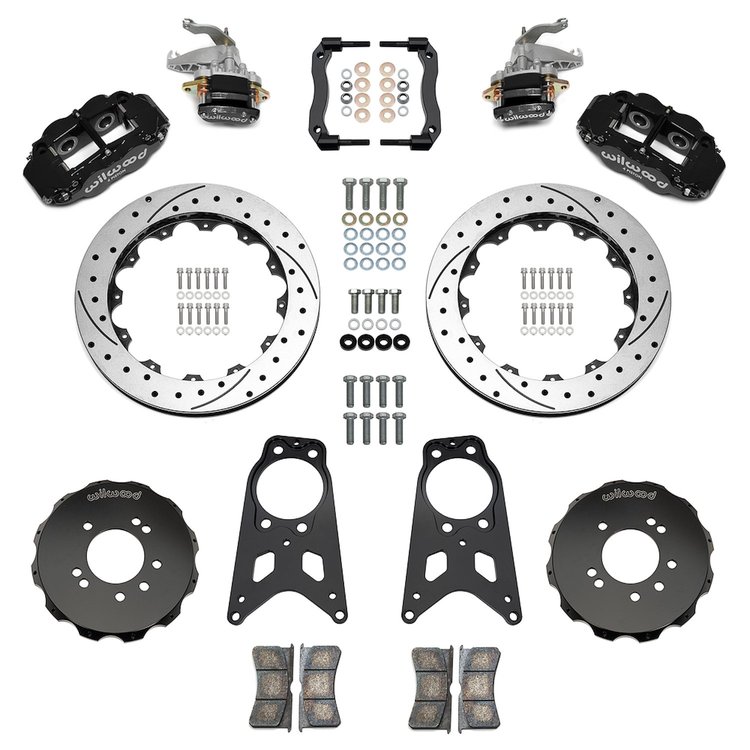

140-18271-D Forged Narrow Superlite 4R-MC4 Big Brake Rear Parking Brake Kit
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-140-18271-D

140-18271-D Forged Narrow Superlite 4R-MC4 Big Brake Rear Parking Brake Kit

$2,40446
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

    Forged Narrow Superlite 4R-MC4 Big Brake Rear Parking Brake Kit
  • Nissan 240Sx 89-98
  • 13.50 Rotor
  • SRP Drilled And Slotted Rotors

    Wilwood 140-18271-D Features:

    FNSL4R-MC4 Big Brake Rear Axle Kits area novel way add disc brakes with an effective parking brake actuation using the MC4 parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the FNSL4R calipers, BP-10 or 20 compound pads, and oversized 13.50in rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

Part TypeDisc Brake Kit
BrandWILWOOD
Package Height15.5
Package Width15.75
Package Length16.0
Weight59.0 PG
Part CategoryPerformance Parts
Caliper Piston Quantity4
Caliper TypeRadial
Rotor Outside Diameter13.50 in.
Rotor Thickness0.81 in.
Wheel Stud Size0.500 in.
Spindle IncludedNo
Component TypeRear Brake Kits - Street Performance
Master Cylinder IncludedNo
Caliper FinishBlack Powder Coat
Hub IncludedNo
Solid Or Vented Type RotorVented
Caliper ColorBlack
Brake Booster IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Length Pintle RetrievedRear Kits
Bolt Circle Diameter4 x 4.5 in., 5 x 4.5 in.
Flange TypeOEM
Brake TypeDisc, Parking
Minimum Wheel Diameter18 in.
Brake Lines IncludedNo
Piston MaterialStainless
Surface TypeSRP Drilled & Slotted
Part FitmentSemi Universal
Flange Offset0.00 in.
Rotor MaterialIron
Vendor Part Number140-18271-D
Package Qty1
Package TypeEA
