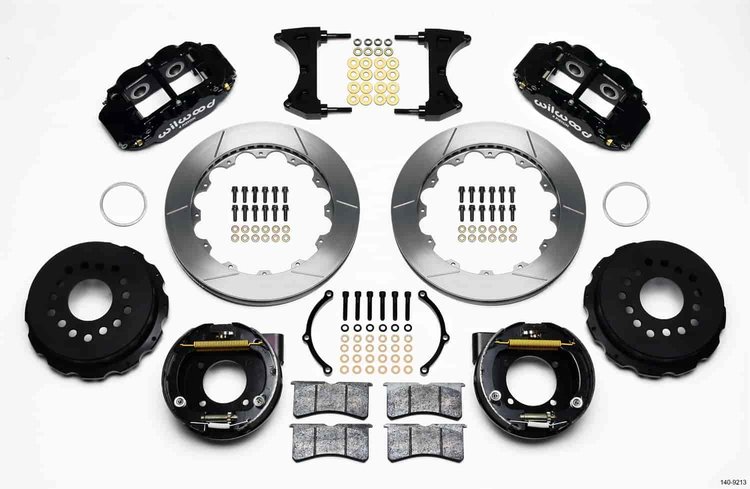

Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit

Vehicle Info Needed

WILWOODPART NUMBER: 950-140-9213

Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit

Name: Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
Brand: WILWOOD
SKU: 950-140-9213
Price: 2141.96 USD
Availability: InStock

^$2,141⁹⁶

Ships on 09/14/2026

Lowest Price Guarantee

With Wilwood Parking Brake

Rear End: Chevy 12 Bolt
4 Piston Caliper (Powdercoate Black)
2.81'' Offset
12.88'' Slotted Vented Rotor
17'' Min. Wheel Dia.

Tech Notes:
Calipers mount rear-of-rotor ( 3 o'clock position)
For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications
Kit designed for non-staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is rear mount.

Part TypeBrake Conversion Kit

BrandWILWOOD

Package Height15.4

Package Width15.8

Package Length16.1

Weight62.31 PG

Part CategoryPerformance Parts

PositionRear

Rear Rotor StyleSolid surface

Brake Booster IncludedNo

QuantitySold as a kit

Minimum Recommended Wheel Diameter17 in (431.8 mm)

Disc Brake Kit TypeHeavy-duty

Parking Brake ProvisionYes

Rear Rotor Diameter13.00 in./330.2mm

Front Spindles IncludedNo

Brake Lines IncludedNo

Master Cylinder IncludedNo

Part FitmentSemi Universal

Parking Brake StyleIntegral caliper

Front Rotor IncludedNo

Rear Rotor ConstructionVented

Rear Rotor IncludedYes

Vendor Part Number140-9213

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
