Made in USA

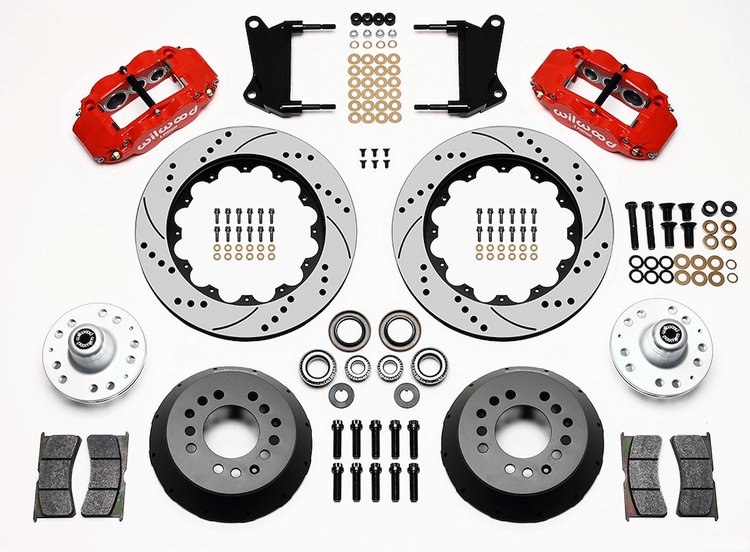

140-9804-DR Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-140-9804-DR

140-9804-DR Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)

$2,47760
2 left in stock
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

GM
    Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
  • Camaro/Nova
  • 67-72
  • Big Brake Radial Mt
  • 14.0
  • Drilled
  • Red

    Wilwood 140-9804-DR Features:

    FNSL6R billet Forged six-piston calipers with 13 in.-14 in. rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17 in. and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

Part TypeDisc Brake Kit
BrandWILWOOD
Package Height15.9
Package Width16.5
Package Length19.1
Weight67.1 PG
Part CategoryPerformance Parts
Caliper Piston Quantity6
Hub IncludedYes
Solid Or Vented Type RotorVented
Caliper TypeRadial
Caliper ColorRed
Brake Booster IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
Rotor Outside Diameter14.00 in.
Rotor Thickness1.10 in.
Length Pintle RetrievedFront Kits
Wheel Stud Size1/2-20 in.
Spindle IncludedNo
Bolt Circle Diameter5 x 4.5 in., 5 x 4.75 in.
Component TypeFront Brake Kits - Street Performance
Brake TypeDisc
Minimum Wheel Diameter18 in.
Brake Lines IncludedNo
Piston MaterialStainless
Surface TypeSRP Drilled & Slotted
Master Cylinder IncludedNo
Part FitmentSemi Universal
Caliper FinishRed Powder Coat
Rotor MaterialSpec-37 Iron
Vendor Part Number140-9804-DR
Package Qty1
Package TypeEA
