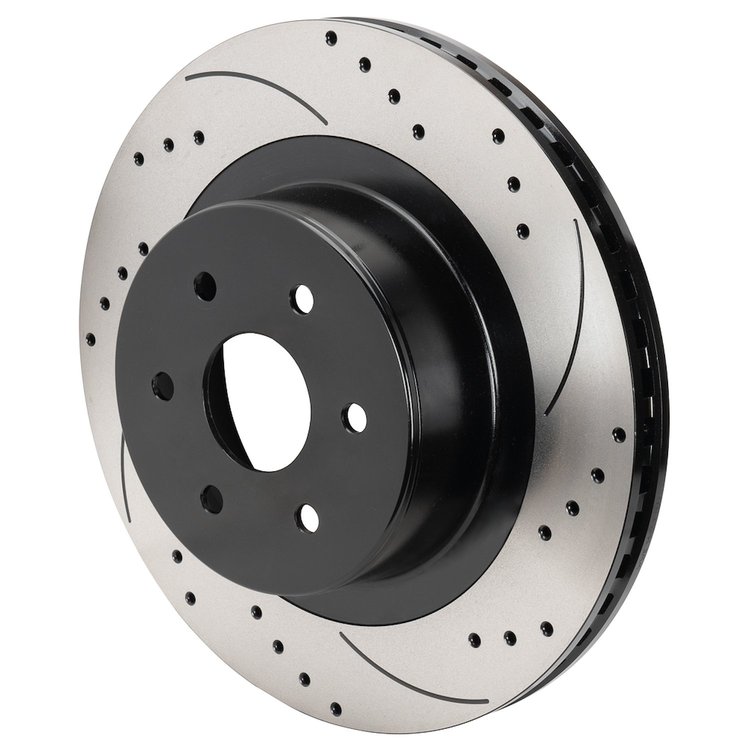

160-16663-BK SRP Drilled Performance Rotor and Hat
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-160-16663-BK

160-16663-BK SRP Drilled Performance Rotor and Hat

$38188
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

    SRP Drilled Performance Rotor and Hat
  • Rotor1600-125An309-222Mncxxxxl 6X5.500
  • D/D
  • SRP Drilled And Slotted Rotors
  • Black

    Wilwood 160-16663-BK Features:

    SRP Drilled Performance Rotors feature a specially engineered directional cross drill and face slot pattern that improve brake response and pad performance throughout the entire range of light to heavy braking. The venting and cleaning action of the holes and slots will reduce pad glaze and disperse gasses and heat generated during the pad to rotor interface. For custom, show and high performance sport driving, SRP rotors offer the high tech look and improved performance of a directional cross-drill and face slot pattern. In addition to the aesthetic appeal, the venting and cleaning action of the hole and slot pattern helps to reduce pad glaze and minimize irregular pad build-up on the rotor faces. The results are a smoother engagement feel at the pedal and consistent response from the pads. Each rotor is precision machined to less than .001 tolerance for overall flatness, parallelism, and radial run-out on long grain carbon iron castings. The rotors are finished with a black electro coat to provide corrosion resistance.

Part TypeBrake Rotor
BrandWILWOOD
Package Height5.12
Package Width16.0
Package Length16.5
Weight39.48 PG
Weight39.480
Part CategoryPerformance Parts
Solid Or Vented Type RotorVented
Mount LocationL/H
Rotor Outside Diameter16.00 in.
Rotor Thickness1.25 in.
Offset2.220 in.
Wheel Stud Size0.63 in.
Brake Drum Inside Diameter8.27 in.
Bolt Circle Diameter6 x 5.50 in.
Component TypeSRP Drilled Performance Rotor & Hat
Mount Type1 Piece
Inside Diameter3.09 in.
BalancedY
Surface TypeSRP Drilled & Slotted, SRP-BLK
Face Thickness0.24 in.
Part FitmentSemi Universal
FinishBlack Electro Coat
Rotor MaterialIron
Vendor Part Number160-16663-BK
Package Qty1
Package TypeEA
