Made in USA

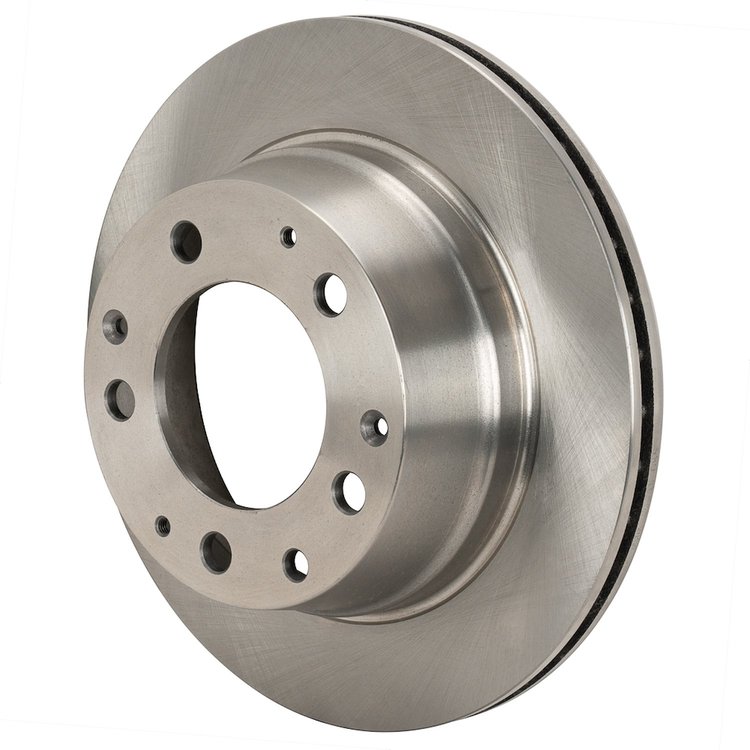

160-16690 HP Vented Rotor and Hat
InfoVehicle Info Needed
WILWOODPART NUMBER: 950-160-16690

160-16690 HP Vented Rotor and Hat

$6361
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

    HP Vented Rotor and Hat
  • Rotor1142-080Ds354-222Maexxxxn 5X5.118
  • D/D

    Wilwood 160-16690 Features:

    HP Vented Rotor and Hats are built for the extreme conditions of motorsports or heavy duty use. The superior heat absorption and dissipation characteristics of these heavy wall multi-vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion.

Part TypeBrake Rotor
BrandWILWOOD
Package Height4.19
Package Width13.0
Package Length13.0
Weight13.72 PG
Weight13.720
Part CategoryPerformance Parts
Solid Or Vented Type RotorVented
Mount LocationNon_Direct
Rotor Outside Diameter11.42 in.
Rotor Thickness0.80 in.
Offset2.220 in.
Wheel Stud Size0.61 in.
Brake Drum Inside Diameter7.08 in.
Bolt Circle Diameter5 x 5.118 in.
Component TypeHP Vented Rotor & Hat
Mount Type1 Piece
Inside Diameter3.54 in.
BalancedN
Surface TypePlain Face, HP
Face Thickness0.27 in.
Part FitmentSemi Universal
FinishPlain
Rotor MaterialIron
Vendor Part Number160-16690
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
