WILWOODPART NUMBER: 950-160-8743-GTB

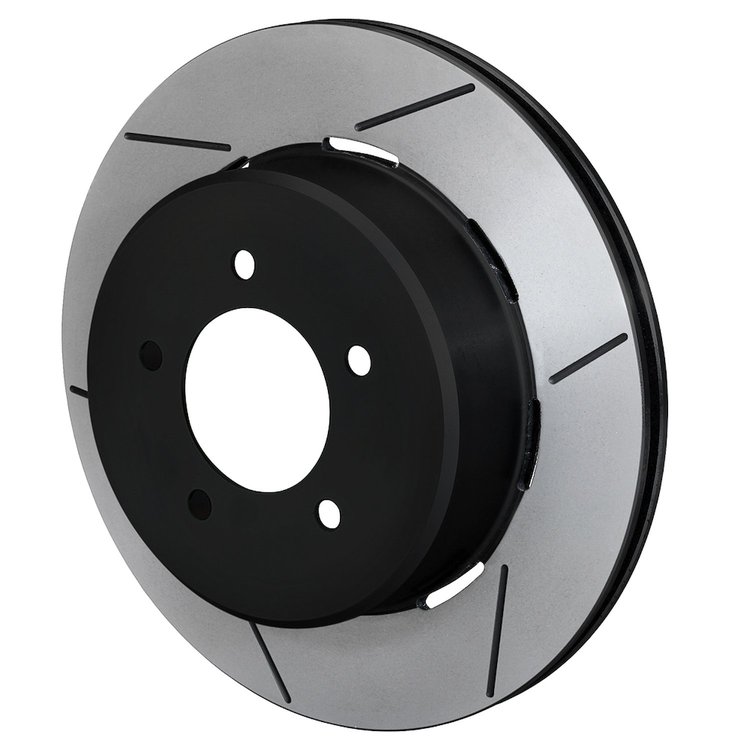

160-8743-GTB GT Vented Rotor and Hat
$33342
- GT Vented Rotor and Hat
- Rotor1219-081Af276-231Mjcxxxxn 5X4.75
- D/D
- Gt
- Black
Wilwood 160-8743-GTB Features:
GT Vented Rotor and Hats are built for the extreme conditions of motorsports or heavy duty use. The superior heat absorption and dissipation characteristics of these heavy wall multi-vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion.
Part TypeBrake Rotor
BrandWILWOOD
Package Height4.19
Package Width13.0
Package Length13.0
Weight15.8 PG
Weight15.800
Part CategoryPerformance Parts
Solid Or Vented Type RotorVented
Mount LocationNon_Direct
Rotor Outside Diameter12.19 in.
Rotor Thickness0.81 in.
Offset2.310 in.
Wheel Stud Size0.52 in.
Brake Drum Inside Diameter7.48 in.
Bolt Circle Diameter5 x 4.75 in.
Component TypeGT Vented Rotor & Hat
Mount Type1 Piece
Inside Diameter2.76 in.
BalancedN
Surface TypeGT Slotted, GT-BLK
Face Thickness0.21 in.
Part FitmentSemi Universal
FinishBlack Electro Coat
Rotor MaterialIron
Vendor Part Number160-8743-GTB
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
