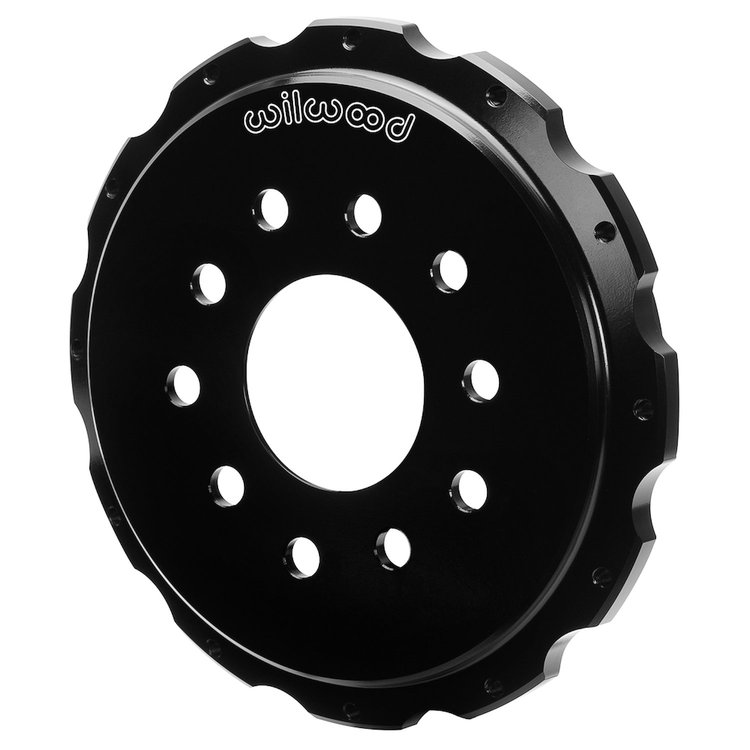

170-17811 Parking Brake Hat - Standard

Name: 170-17811 Parking Brake Hat - Standard
Brand: WILWOOD
SKU: 950-170-17811
Price: 299.91 USD
Availability: InStock

^$299⁹¹

Ships on 09/10/2026

Lowest Price Guarantee

Hat
12X8.75 Bc
5X4.50/4.75 Mt
.672 Offset
2.783 Reg

Wilwood 170-17811 Features:
These premium grade aluminum hats are used with Wilwood's internal shoe parking brake kits. Each hat is a precision machined, threaded hole design for use in conjunction with through-hole mount rotors. After machining, the hats are electro-coated for corrosion resistance.

Part TypeBrake Rotor Hat

BrandWILWOOD

Package Height2.88

Package Width9.75

Package Length9.75

Weight2.2 PG

Weight2.200

Part CategoryPerformance Parts

Use TypeCorvette C5/C6

MaterialAluminum

Thread Size1/4-20

Offset0.670

Mount Hole ShapeThreaded

Brake Drum Inside Diameter7.48

Mounting Bolt Hole Circle Diameter12 x 8.75

Bolt Circle Diameter5 x 4.75, 5 x 4.50

Component TypeParking Brake Hat - Standard

Mount TypeFixed Mount

Installation Adapters2.78

Face Thickness0.25

Part FitmentSemi Universal

FinishBlack E-Coat

Vendor Part Number170-17811

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations

⚠️ Warning
