WILWOODPART NUMBER: 950-J000029

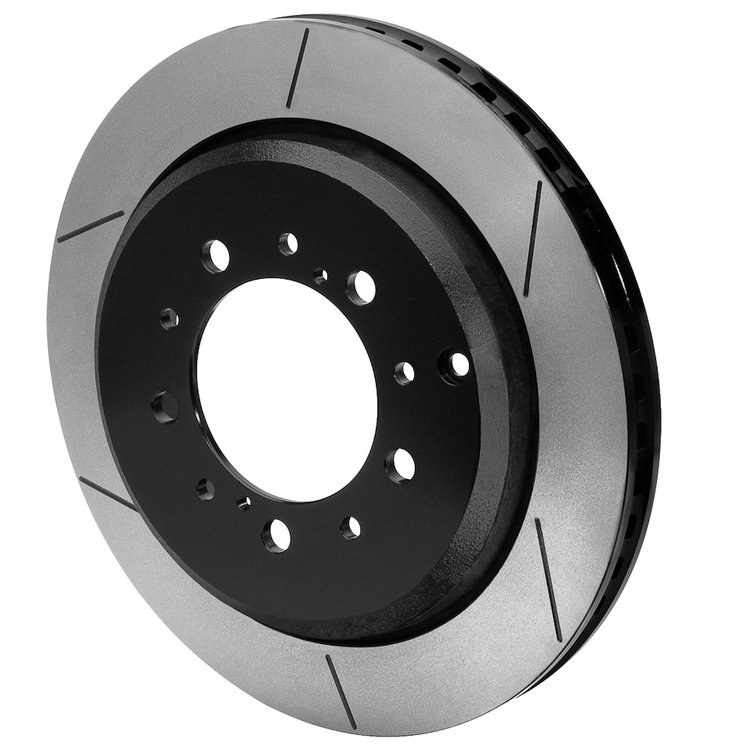

160-15475-GTB GT Vented Rotor and Hat
$28666
- GT Vented Rotor and Hat
- Rotor1450-110Cv442-066Mjexxxxn 5X5.906
- D/D
- Gt
- Black
Wilwood 160-15475-GTB Features:
GT Vented Rotor and Hats are built for the extreme conditions of motorsports or heavy duty use. The superior heat absorption and dissipation characteristics of these heavy wall multi-vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion.
Part TypeBrake Rotor
BrandWILWOOD
Package Height3.75
Package Width15.37
Package Length15.37
Weight27.8 PG
Weight27.880
Part CategoryPerformance Parts
Solid Or Vented Type RotorVented
Mount LocationNon_Direct
Use Type14.50-1.10-X.XX-0.66-GTBVTD-6LUG
Rotor Outside Diameter14.50
Rotor Thickness1.10
Offset0.660
Brake Drum Inside Diameter9.44
Bolt Circle Diameter5 X 5.91
Component TypeGT Vented Rotor & Hat
Mount Type1 Piece
Inside Diameter4.42
BalancedN
Recommended Use5 X 150mm BC
Surface TypeGT Slotted, GT-BLK
Face Thickness0.35
Part FitmentSemi Universal
FinishBlack Electro Coat
Rotor MaterialIron
Vendor Part Number160-15475-GTB
Package Qty1
Package TypeEA
