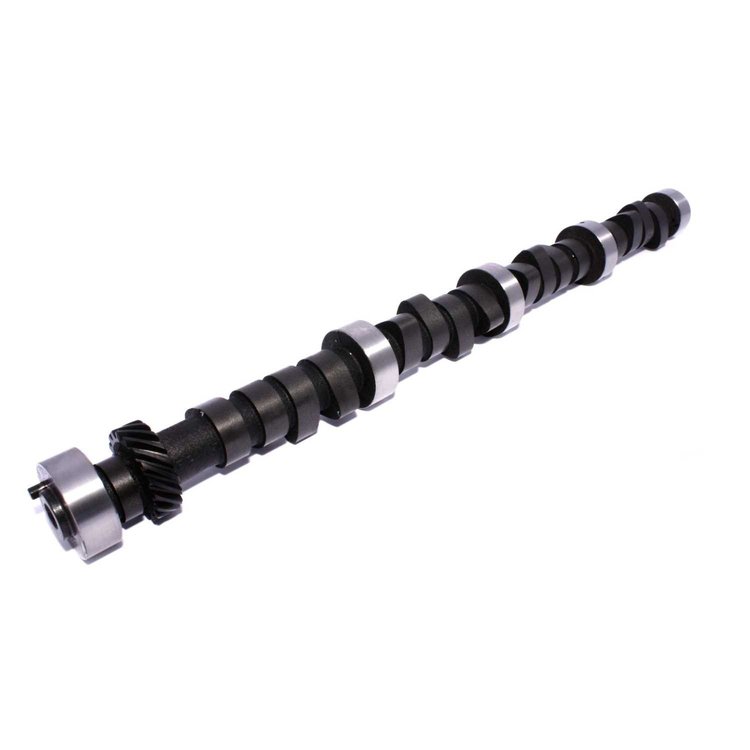

Vehicle Info NeededCOMP CAMSPART NUMBER: 249-21-233-4
Xtreme Energy Mechanical Flat Camshaft Lift: .540"/.558"
$30995
Ships Tomorrow
Lowest Price GuaranteeChrysler 383-440 C.I. 8 CYL. 1959-1980
Single Bolt
Single Bolt
- Xtreme Energy Mechanical Flat Camshaft
- Lift: .540"/.558"
- Duration: 290°/298°
- Lobe Separation Angle: 110°
- RPM Range 3200-7000
Solid-Max effort street/bracket race cam 10.5:1 compression 3500 stall and low gears.273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Max effort street/bracket race cam. 10.5:1 compression, 3500+ stall and low gears.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width2.9
Package Length24.5
Weight9.65 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)260
Cam StyleMechanical flat tappet
Grind NumberCRB XE290S-10
Exh. Duration Advertised (Deg)298
Engine Make/SizeMopar V8
Intake Valve Lift With Factory Rocker Arm Ratio (I0.54
Int. Duration @ .050 In. (Deg)252
Basic Operating Rpm Range3,200-7,000
Intake Valve Lift0.54 in (13.716 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)290
Lobe Separation (Deg)110
Rpm Range3200-7000
Advertised Duration290 int./298 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.558
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.540 int./0.558 exh.
Camshaft Gear Attachment1-bolt
QuantitySold individually
Exhaust Valve Lift0.558 in (14.173 mm)
Advertised Intake Duration290
Intake Duration At 050 Inch Lift252
Exhaust Duration At 050 Inch Lift260
Advertised Exhaust Duration298
Lifter TypeMechanical Flat Tappet
Duration At 050 Inch Lift252 int./260 exh.
Valve Springs RequiredYes
Vendor Part Number21-233-4
Package Qty1
Package TypeEA
