Vehicle Info NeededCOMP CAMSPART NUMBER: 249-21-242-4

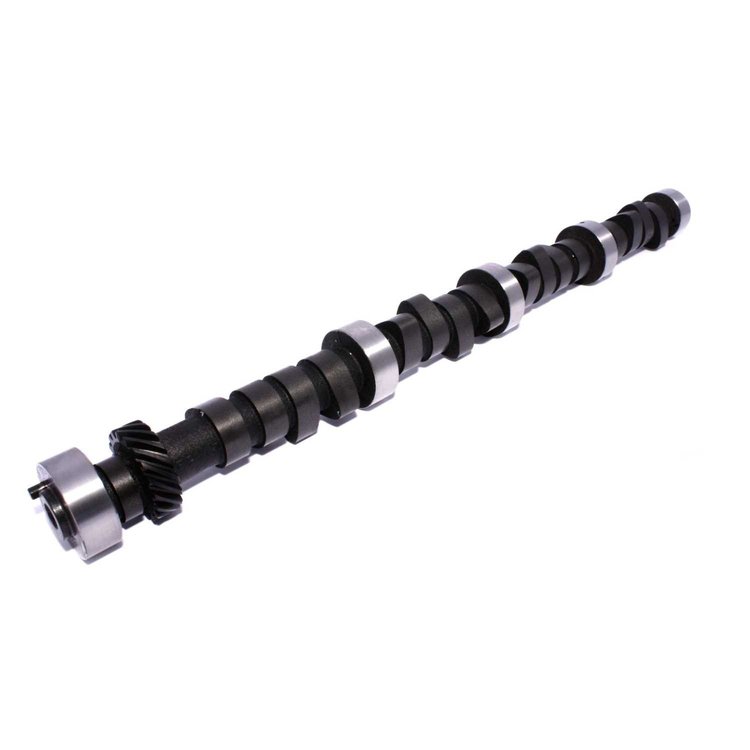

Magnum 292H Hydraulic Flat Tappet Camshaft Lift .501"/.501" Duration 292°/292° RPM Range 3000-6200
$30995
Ships on Sep 15, 2026
Lowest Price GuaranteeChrysler 383-440ci 1959-1980
- Magnum 292H Hydraulic Flat Tappet Camshaft
Lift .501"/.501"
Duration 292°/292°
RPM Range 3000-6200
Hydraulic-Serious Street / Strip effort. 383 needs 3000-3500 stall. 440 needs 2500-3000. 750 to 800 CFM carb. & headers 3.91 gear up.
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Serious street/strip effort. 383 needs 3000-3500+ stall. 440 needs 2500-3000. 750 to 800 CFM carb and headers, 3.91+ gear.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.0
Package Length24.5
Weight10.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberCRB 292H-10
Exh. Duration Advertised (Deg)292
Engine Make/SizeMopar 383-440
Intake Valve Lift With Factory Rocker Arm Ratio (I0.501
Int. Duration @ .050 In. (Deg)244
Basic Operating Rpm Range3,000-6,200
Intake Valve Lift0.501 in (12.725 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range3000-6200
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.501
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.501 int./0.501 exh.
Camshaft Gear Attachment1-bolt
QuantitySold individually
Exhaust Valve Lift0.501 in (12.725 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number21-242-4
Package Qty1
Package TypeEA
