Vehicle Info NeededCOMP CAMSPART NUMBER: 249-23-242-4

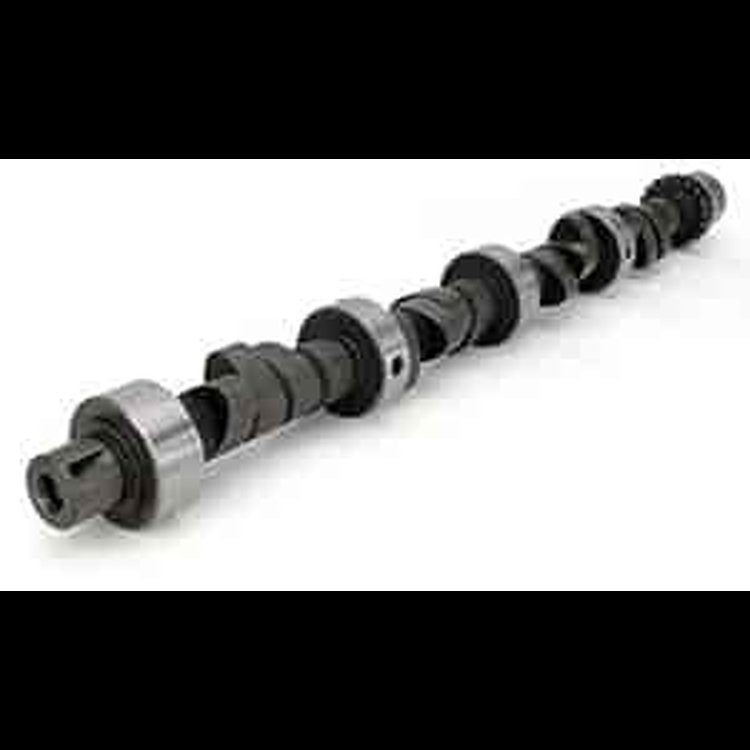

Xtreme Energy 292H Hydraulic Flat Tappet Camshaft Only Lift .501"/.501" Duration 292°/292° RPM Range 3000-6200
$18299
Ships on 09/16/2026
Lowest Price GuaranteeChrysler 383-440ci Big Block 1959-80
- Xtreme Energy 292H Hydraulic Flat Tappet Camshaft Only
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Chrysler; Dodge; Plymouth; Challenger; Charger; Charger 500; Li' Red Express; Ram; Ramcharger; Cuda; MOPAR; 383; 400; 413; Wedge; 426 Wedge; 426 HEMI; 440; B; RB; Fury; Cuda; Road Runner; GTX; Duster; Coronet; Super Bee; Daytona; Valiant
Lift .501"/.501"
Duration 292°/292°
RPM Range 3000-6200
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight10.06 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Exh. Duration Advertised (Deg)292
Engine Make/SizeMopar 383-440
Intake Valve Lift With Factory Rocker Arm Ratio (I0.501
Int. Duration @ .050 In. (Deg)244
Basic Operating Rpm Range3,000-6,200
Intake Valve Lift0.501 in (12.725 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range3000-6200
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.501
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.501 int./0.501 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.501 in (12.725 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number23-242-4
Package Qty1
Package TypeEA
