Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-302-8

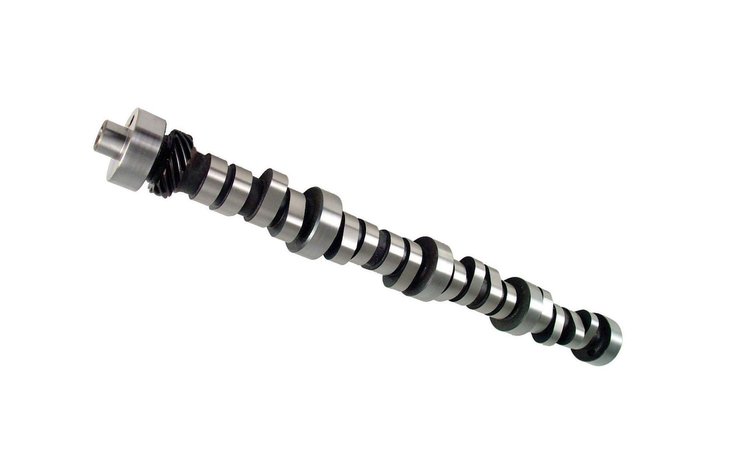

Magnum Hydraulic Roller Camshaft Ford 5.0L 1985-95 Factory Roller Lift: .512"/.533"
$57795
Ships on Sep 03, 2026
Lowest Price GuaranteeFord 5.0L 1985-95 Factory Roller
- Magnum Hydraulic Roller Camshaft
- Lift: .512"/.533"
- Duration: 281°/284°
- Lobe Separation Angle: 112°
- RPM Range: 2000-5500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Mass air, 5 speed or 2500+ stall, heads, intake, headers, 3.55-3.73 gears.
Ford 5.0L 1985-95 Factory Roller
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.0
Package Length24.1
Weight9.8 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic roller tappet
Grind Number281HR
Exh. Duration Advertised (Deg)284
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.512
Int. Duration @ .050 In. (Deg)220
Basic Operating Rpm Range2,000-5,500
Intake Valve Lift0.512 in (13.005 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)281
Lobe Separation (Deg)112
Rpm Range2000-5500
Advertised Duration281 int./284 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.533
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.512 int./0.533 exh.
QuantitySold individually
Exhaust Valve Lift0.533 in (13.538 mm)
Advertised Intake Duration281
Intake Duration At 050 Inch Lift220
Exhaust Duration At 050 Inch Lift224
Advertised Exhaust Duration284
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift220 int./224 exh.
Valve Springs RequiredYes
Vendor Part Number35-302-8
Package Qty1
Package TypeEA
