Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-306-8

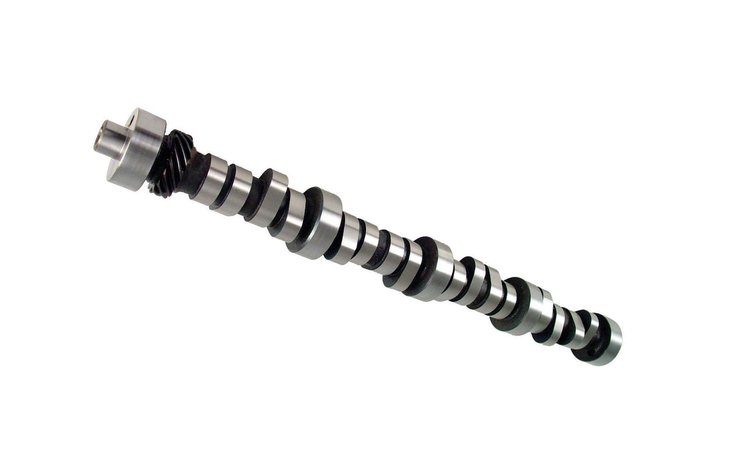

Comp Cams Blower/Turbo Hydraulic Flat Tappet Camshafts
$57795
2 left in stock
Ships Today
Lowest Price Guarantee Ford 5.0L 1985-2002
- Blower Hydraulic Flat Tappet Camshaft
- For engines originally equipped with hydraulic roller cams 1985-95 CARBURETED or EFI
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Supercharged combinations with heads, intake, headers. 3.55-3.73 gear, mild stall.
Ford 5.0L 1985-2002
Lift: .533"/.544"
Duration: 284°/290°
Lobe Separation Angle: 114°
RPM Range: 2000-6000
Hydraulic Roller-Supercharged combinations with heads, intake, headers. 3.55-3.73 gear, mild stall.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.1
Package Width3.2
Package Length24.2
Weight9.51 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller tappet
Grind NumberFW 284H-R14
Exh. Duration Advertised (Deg)290
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.533
Int. Duration @ .050 In. (Deg)224
Basic Operating Rpm Range2,000-6,000
Intake Valve Lift0.533 in (13.538 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)284
Lobe Separation (Deg)114
Rpm Range2000-6000
Advertised Duration284 int./290 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.533 int./0.544 exh.
QuantitySold individually
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration284
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration290
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number35-306-8
Package Qty1
Package TypeEA
