Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-308-8

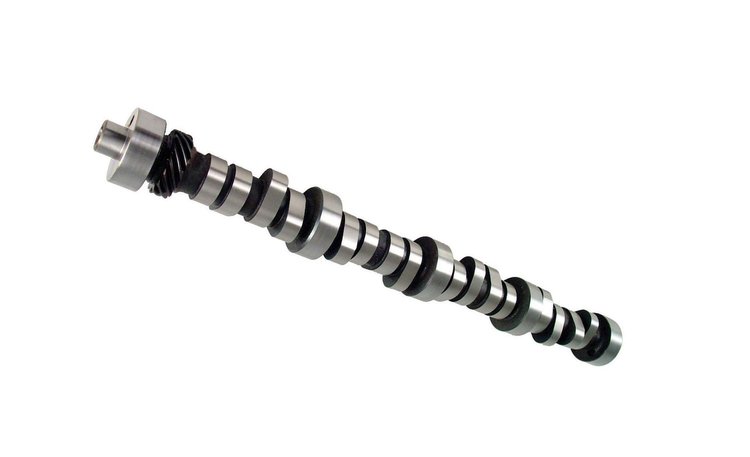

Magnum Hydraulic Roller Camshaft Ford 5.0L 1985-95 Factory Roller Lift: .533"/.533"
$57795
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeFord 5.0L 1985-95 Factory Roller
- Magnum Hydraulic Roller Camshaft
- Lift: .533"/.533"
- Duration: 266°/270°
- Lobe Separation Angle: 114°
- RPM Range: 1200-5200
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Good stock upgrade. Best with mild tuning.
Ford 5.0L 1985-95 Factory Roller
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width2.9
Package Length24.2
Weight11.1 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)215
Cam StyleHydraulic roller tappet
Grind NumberFW 266H-R14
Exh. Duration Advertised (Deg)270
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.533
Int. Duration @ .050 In. (Deg)210
Basic Operating Rpm Range1,200-5,200
Intake Valve Lift0.533 in (13.538 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)266
Lobe Separation (Deg)114
Rpm Range1200-5200
Advertised Duration266 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.533
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.533 int./0.533 exh.
QuantitySold individually
Exhaust Valve Lift0.533 in (13.538 mm)
Advertised Intake Duration266
Intake Duration At 050 Inch Lift210
Exhaust Duration At 050 Inch Lift215
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift210 int./215 exh.
Valve Springs RequiredYes
Vendor Part Number35-308-8
Package Qty1
Package TypeEA
