Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-310-8

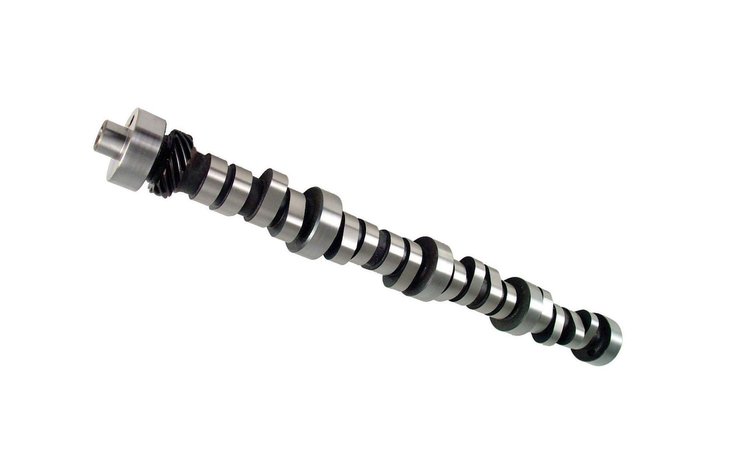

Magnum Hydraulic Roller Camshaft Ford 5.0L 1985-95 Factory Roller Lift: .533"/.544"
$57795
Ships on 09/15/2026
Lowest Price GuaranteeFord 5.0L 1985-95 Factory Roller
- Magnum Hydraulic Roller Camshaft
- Lift: .533"/.544"
- Duration: 270°/276°
- Lobe Separation Angle: 114°
- RPM Range: 1500-5500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Mild modifications, gears, mass air. Has slight idle.
Ford 5.0L 1985-95 Factory Roller
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight9.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)220
Cam StyleHydraulic roller tappet
Grind NumberFW 270H-R14
Exh. Duration Advertised (Deg)276
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.533
Int. Duration @ .050 In. (Deg)215
Basic Operating Rpm Range1,500-5,500
Intake Valve Lift0.533 in (13.538 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)114
Rpm Range1500-5500
Advertised Duration270 int./276 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.533 int./0.544 exh.
QuantitySold individually
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift215
Exhaust Duration At 050 Inch Lift220
Advertised Exhaust Duration276
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift215 int./220 exh.
Valve Springs RequiredYes
Vendor Part Number35-310-8
Package Qty1
Package TypeEA
