Product Discontinued
COMP CAMSPART NUMBER: 249-35-427-8

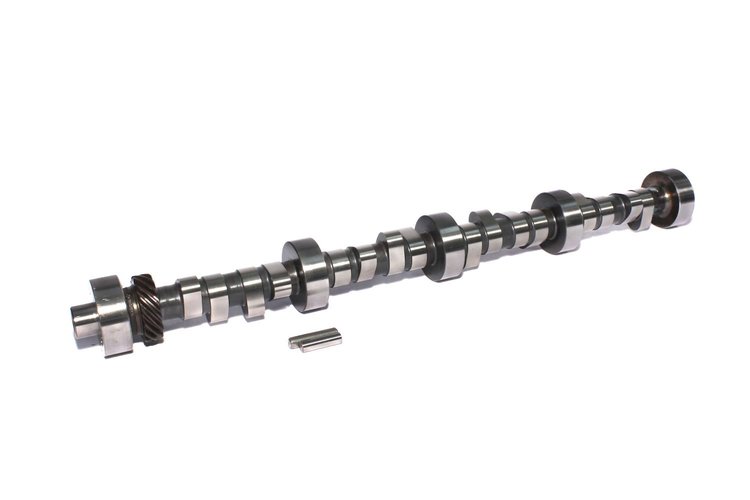

Ford 351W Xtreme Energy XR294RF-HR Retro-Fit Hydraulic Roller Camshafts
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 351W 8 cyl. 1969-1996For engines NOT originally equipped with a hydraulic roller camshaft
Xtreme Energy XR294RF-HR Retro-Fit Hydraulic Roller Camshaft1969-1996 Ford 351W V8Lift: .576 in./.600 in. Duration: 294°/300° Lobe Separation Angle: 110° RPM Range: 2500-6500
Street/strip, 9.5:1 compression, intake, headers, 3000+ converter, 4.10+ gears, rough idle.
Notes:
- Street/Strip 9.5:1 Compression, Intake Manifold, Headers, Rough idle
- 3000+ stall converter required
- 4.10+ gears recommended
- Requires upgraded valve springs (249-987-16)
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Street/strip, 9.5:1 compression, intake, headers, 3000+ converter, 4.10+ gears, rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.25
Package Width3.25
Package Length26.0
Weight8.13 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)248
Cam StyleHydraulic roller tappet
Grind NumberFW XR294RF-HR10
Exh. Duration Advertised (Deg)300
Engine Make/SizeFord 351W
Intake Valve Lift With Factory Rocker Arm Ratio (I0.576
Int. Duration @ .050 In. (Deg)242
Intake Valve Lift0.576 in (14.63 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294
Lobe Separation (Deg)110
Rpm Range2500-6500
Advertised Duration294 int./300 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.6
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.576 int./0.600 exh.
QuantitySold individually
Exhaust Valve Lift0.6 in (15.24 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift242
Exhaust Duration At 050 Inch Lift248
Advertised Exhaust Duration300
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift242 int./248 exh.
Valve Springs RequiredYes
Vendor Part Number35-427-8
Package Qty1
Package TypeEA
