Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-440-8

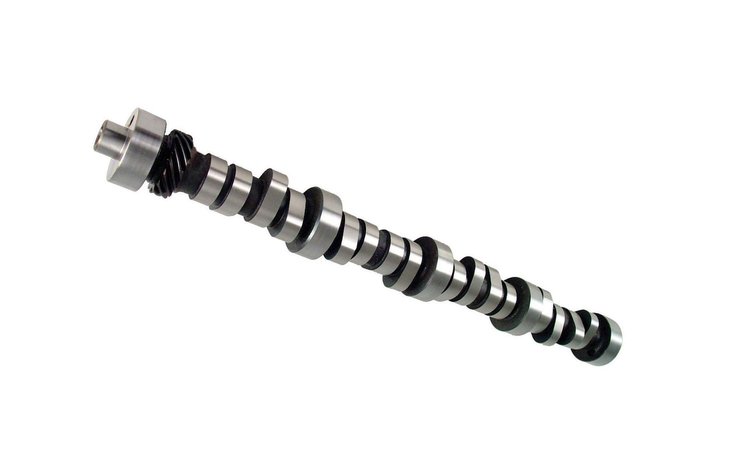

Magnum Hydraulic Roller Camshaft Ford 5.0L 1985-95 Factory Roller Carburetor Only Lift: .512"/.512"
$57795
Ships on Sep 15, 2026
Lowest Price GuaranteeFord 5.0L 1985-95 Factory RollerCarburetor Only
- Magnum Hydraulic Roller Camshaft
- Lift: .512"/.512"
- Duration: 281°/281°
- Lobe Separation Angle: 110°
- RPM Range: 2000-5500
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Great in street machines. Best power above 3500 RPM but still good torque. Mild rough idle. Largest for stock heads and intake. 2000+ stall recommended.
Ford 5.0L 1985-95 Factory Roller
Carburetor Only
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width2.9
Package Length24.3
Weight9.88 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)220
Cam StyleHydraulic roller tappet
Grind NumberFW 281H-R10
Exh. Duration Advertised (Deg)281
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.512
Int. Duration @ .050 In. (Deg)220
Basic Operating Rpm Range2,000-5,500
Intake Valve Lift0.512 in (13.005 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)281
Lobe Separation (Deg)110
Rpm Range2000-5500
Advertised Duration281 int./281 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.512
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.512 int./0.512 exh.
QuantitySold individually
Exhaust Valve Lift0.512 in (13.005 mm)
Advertised Intake Duration281
Intake Duration At 050 Inch Lift220
Exhaust Duration At 050 Inch Lift220
Advertised Exhaust Duration281
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift220 int./220 exh.
Valve Springs RequiredYes
Vendor Part Number35-440-8
Package Qty1
Package TypeEA
