Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-556-8

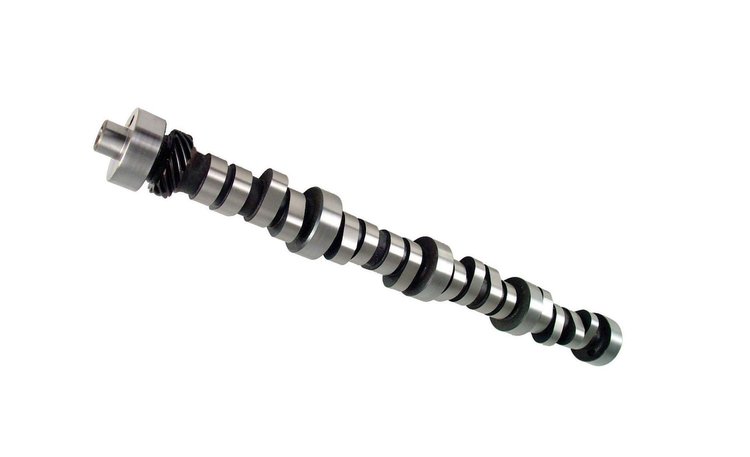

Nitrous HP Hydraulic Roller Camshaft Ford 5.0L 1985-95 Factory Roller Lift: .555"/.570"
$57795
Ships on 09/15/2026
Lowest Price GuaranteeFord 5.0L 1985-2002Originally Equipped With Hydraulic Roller Camshaft
- Nitrous HP Hydraulic Roller Camshaft
- Lift: .555"/.570"
- Duration: 274°/286°
- Lobe Separation Angle: 114°
- RPM Range: 2200-6200
- Maximize Performance
- Excellent Performance With/With Out Nitrous
- Incredible Gains With Nitrous
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Street/strip applications, 100-175 hp kit or medium blower, rough idle.
Ford 5.0L 1985-95 Factory Roller
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.9
Package Width3.0
Package Length24.2
Weight9.75 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleHydraulic roller tappet
Grind NumberFW NX274HR-14
Exh. Duration Advertised (Deg)286
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.555
Int. Duration @ .050 In. (Deg)224
Basic Operating Rpm Range2,200-6,200
Intake Valve Lift0.555 in (14.097 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)274
Lobe Separation (Deg)114
Rpm Range2200-6200
Advertised Duration274 int./286 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.57
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.555 int./0.570 exh.
QuantitySold individually
Exhaust Valve Lift0.57 in (14.478 mm)
Advertised Intake Duration274
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift236
Advertised Exhaust Duration286
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./236 exh.
Valve Springs RequiredYes
Vendor Part Number35-556-8
Package Qty1
Package TypeEA
