Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-560-8

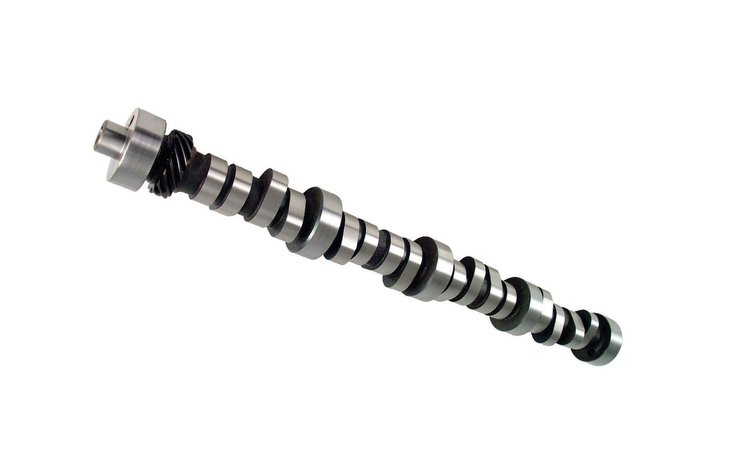

Nitrous HP Hydraulic Roller Camshaft Ford 5.0L 1985-95 Factory Roller Lift: .565"/.580"
$57795
2 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeFord 5.0L 1985-2002Originally Equipped With Hydraulic Roller Camshaft
- Nitrous HP Hydraulic Roller Camshaft
- Lift: .565"/.580"
- Duration: 282°/294°
- Lobe Separation Angle: 114°
- RPM Range: 2600-6600
- Maximize Performance
- Excellent Performance With/With Out Nitrous
- Incredible Gains With Nitrous
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Pro Street applications, excellent for 150-300 hp kits or large blower, computer modifications required.
Ford 5.0L 1985-95 Factory Roller
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.8
Package Width3.0
Package Length24.2
Weight10.2 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic roller tappet
Grind NumberFW NX282HR-14
Exh. Duration Advertised (Deg)294
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.565
Int. Duration @ .050 In. (Deg)232
Basic Operating Rpm Range2,600-6,800
Intake Valve Lift0.565 in (14.351 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)282
Lobe Separation (Deg)114
Rpm Range2600-6600
Advertised Duration282 int./294 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.58
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.565 int./0.580 exh.
QuantitySold individually
Exhaust Valve Lift0.58 in (14.732 mm)
Advertised Intake Duration282
Intake Duration At 050 Inch Lift232
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration294
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift232 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number35-560-8
Package Qty1
Package TypeEA
