Vehicle Info NeededCOMP CAMSPART NUMBER: 249-35-775-8

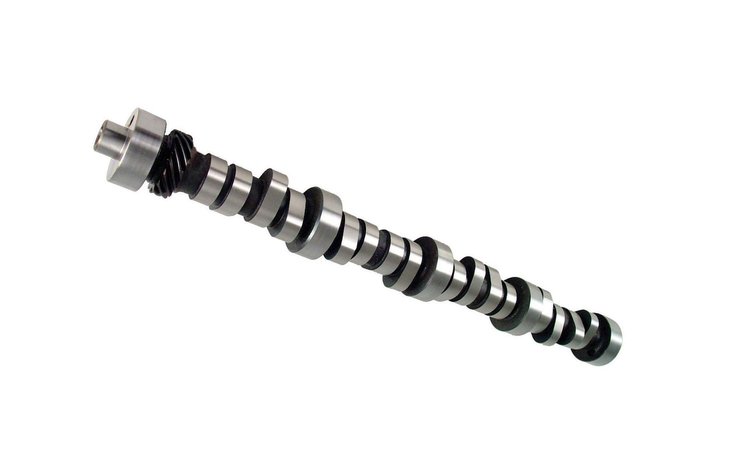

XFI Hydraulic Roller Camshaft Ford 5.0L 1985-2002 Lift: .579"/.579" With 1.6 Rockers
$57795
Ships on Sep 15, 2026
Lowest Price GuaranteeFord 5.0L Computer Controlled 1985-2002
- XFI Hydraulic Roller Camshaft
- Lift: .579"/.579" With 1.6 Rockers
- Duration: 286°/300°
- Lobe Separation Angle: 114°
- RPM Range: 2600-6300
Advertised Duration: 286° Intake, 300° Exhaust
Duration @ 0.050: 236° Intake, 248° Exhaust
Lift: 0.579" Intake, 0.579" Exhaust
Lobe Sep. Angle: 114°
Intake Centerline: 110°Description:
Hydraulic Roller-347" or larger. Super strong mid-range. Best w/ 9.5 to 1+ compression, aftermarket heads, intake, T-body & injectors. 3000+ stall or 5 speed. Computer mods a must.Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
347c.i. or larger. Super strong mid-range. Best w/ 9.5:1+ compression, aftermarket heads, intake, T-body and injectors. 3000+ stall or 5 speed. Computer mods a must.
Ford 5.0L 1985-2002
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.7
Package Width3.0
Package Length24.5
Weight10.85 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)248
Cam StyleHydraulic roller tappet
Exh. Duration Advertised (Deg)300
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.579
Int. Duration @ .050 In. (Deg)236
Basic Operating Rpm Range2,800-6,200
Intake Valve Lift0.579 in (14.707 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)286
Lobe Separation (Deg)114
Rpm Range2600-6300
Advertised Duration286 int./300 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.579
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.579 int./0.579 exh.
QuantitySold individually
Exhaust Valve Lift0.579 in (14.707 mm)
Advertised Intake Duration286
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift248
Advertised Exhaust Duration300
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift236 int./248 exh.
Valve Springs RequiredYes
Vendor Part Number35-775-8
Package Qty1
Package TypeEA
