Performer Power Package for Small Block Chevy
- Performer Power Package
- Small Block Chevy 262-350ci 1955-86
- 4-bbl Square-Bore Carb Flange (non-EGR)
- Idle-5500 rpm
- Designed for street 1955-86 262-400ci Chevrolet small-block V8s.
- Not for 1987 and later cast iron or Chevy Bowtie heads.
- Will fit 1987 and later stock aluminum heads.
- Has provisions to add oil fill tube.
- Performers accept late-model choke, waterneck, air-conditioning, alternator and H.E.I.
- This intake is for 302, 327 and 350ci V8s with OEM or Edelbrock (350-1400) 4-bbl. carb.; 1966-72 (1973 non-California) passenger cars, 1966-83 trucks and Suburbans; except stock equipped EGR.Intake p/n 350-3701 is for 305, 350 and 400 V8s with OEM 4-bbl. or Edelbrock p/n 350-1400 carb. 1972-86 and GM corporate engines with 350 V8s; 1981-86.

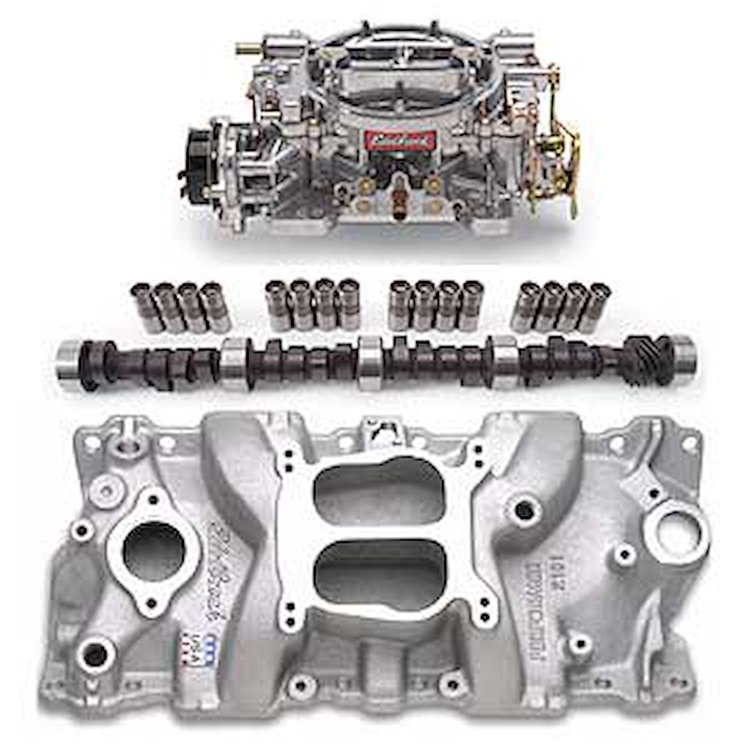

Power Package includes matching:
- Performer Intake Manifold 350-2101
- Edelbrock Performer 600cfm Carburetor 350-1406
- Performer-Plus Hydraulic Flat Tappet Camshaft & Lifters 350-2102
Installation Notes:
- Port exit dimensions: 1.14' x 1.88'
- Recommended intake gasket: Edelbrock 350-7201
- Manifold height: (A) 3.50' , (B) 4.60'; Carb pad height = 4.05'
- View Manifold 'A/B' Measurement Guide.
- Use EGR adapter 350-8035 to adapt clamp-on EGR valve.
- Choke plate 350-8901 is included.
Carburetor Recommendations:
OEM Rochester Quadrajet 4-bbl.
- carb will work with non-EGR system
- carb has provision for evaporative canister
- carb acceptable to factory cruise control
- use Automatic Divorced Choke Rod 350-9171 and throttle bracket 350-8036 for 1972-78 vehicles.
Edelbrock Performer 600cfm Carburetor 350-1400.
- carb will work with EGR system
- carb has provision for evaporative canister
- carb acceptable to factory cruise control.
- use throttle bracket 350-8036 for 1972-78 vehicles.
Edelbrock Performer 600cfm Carburetor 350-1405.
- carb will work with non-EGR system
- carb has no provision for evaporative canister
- requires 350-8008 or 350-8024 stud, nut & washer kit
- carb acceptable to factory cruise control
- carb has manual choke only
- use throttle bracket 350-8036 for 1972-78 vehicles
Edelbrock Performer 600cfm Carburetor 350-1406.
- carb will work with non-EGR system
- carb has no provision for evaporative canister
- carb acceptable to factory cruise control
- use throttle bracket 350-8036 for 1972-78 vehicles
Edelbrock Thunder Series AVS 650cfm Carburetor 350-1905.
- carb will work with non-EGR system
- carb has no provision for evaporative canister
- requires 350-8008 or 350-8024 stud, nut & washer kit
- carb acceptable to factory cruise control
- carb has manual choke only
- use throttle bracket 350-8036 for 1972-78 vehicles.
Edelbrock Thunder Series AVS 650cfm Carburetor 350-1906
- carb will work with non-EGR system
- carb has no provision for evaporative canister
- carb acceptable to factory cruise control
- use throttle bracket 350-8036 for 1972-78 vehiclesCamshaft Specs:
- Designed for optimum torque from the low-end to the mid-range.
- They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s.
- You can expect a major improvement in throttle response and torque.
Duration Advertised: 280° Intake / 295° Exhaust Duration @ .050" Lift: 204° Intake / 214° Exhaust Valve Lift: .420" Intake / .442" Exhaust Lobe Separation Angle: 112 Open/Close @.050" Cam Lift: Intake - 5° ATDC (opens) / 29° ABDC (closes)
Exhaust - 44° BBDC (opens) / 10° BTDC (closes)Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Intake Manifold, Carburetor and Camshaft Kit
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
Proven Performance With No Guesswork!
The Edelbrock Performer Power Packages are designed for stock engines and significantly increase performance, fuel economy while lowering exhaust emissions. These packages provide incredible power from idle to 5500 RPM for your daily commute, towing, passing or uphill climbs in your car, truck, van or recreational vehicle. The main components of these packages include intake manifolds, carburetors and camshafts. Edelbrock also offers cylinder heads that match to optimize performance. For late-model fuel injected vehicles, Performer intake manifolds offer performance improvements with emissions equipment compatibility. Performer Multi-Point EFI Systems, camshafts and cylinder heads are also available to increase performance even further on GM vehicles originally equipped with throttle body injected V8's.
