Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

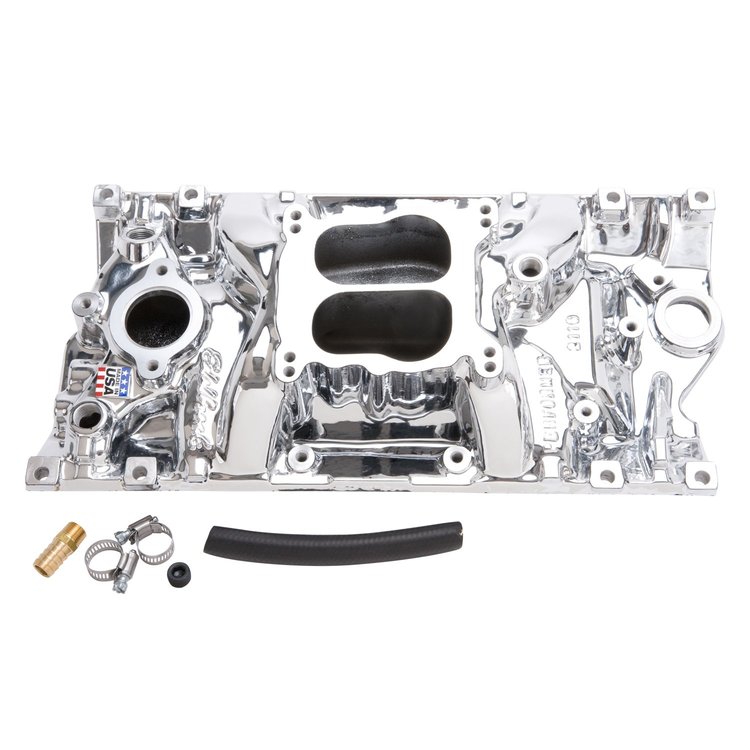

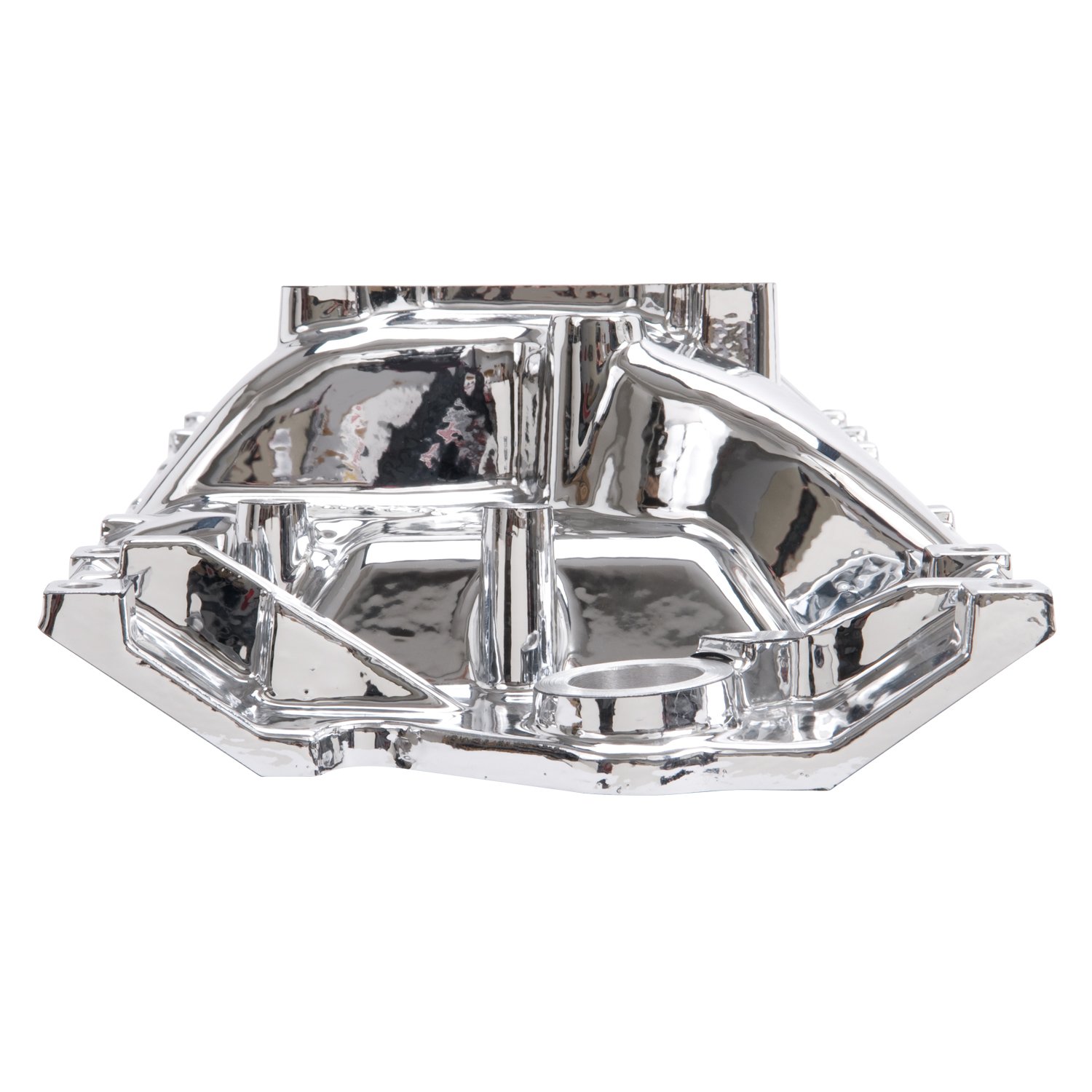

Small Block Chevy 262-400ci
- Performer Intake Manifold
- 1955-1986 Chevy 262-400ci
with 1996-Up GM Vortec or Edelbrock E-Tec Heads - 4-bbl Spread Bore Carb Flange (non-EGR)
- Idle-5500 RPM Range
- Endurashine Finish
- Based on #350-2101, this manifold was designed for the street rod, industrial, and engine swap markets that use Chevy 262-400 engines with 1996-Up Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads
- May also be used on Vortec or 1995-Earlier blocks
- Port Exit Dimensions: 2.05" tall with slanted side walls
- Manifold Height: (A) 3.87", (B) 5.28"
- Carb Pad Height: 4.57" Click here to determine carburetor pad height
- Recommended Intake Gasket: JEGS p/n 555-210003
- Works with square bore carbs
- Accepts late model alternator, water neck, AC, and HEI (provisions for external water bypass; no provision for exhaust-heated chokes)
- Stock brackets require modification to fit upright manifold bolt holes
- Does not clear stock Corvette hood
Carb Recommendations - Pre-1981 OE Electric Choke 4-bbl Carburetor Only
- Edelbrock Performer 500cfm Carburetor Manual Choke p/n 350-1405 , Electric Choke p/n 350-1403
- Edelbrock Thunder AVS 500cfm Carburetor Manual Choke p/n 350-1904 , Electric Choke p/n 350-1903
- Edelbrock Performer 600cfm Carburetor (non-EGR) Manual Choke p/n 350-1405 , Electric Choke p/n 350-1406
- Edelbrock Thunder AVS650cfm Carburetor Manual Choke p/n 350-1805 , Electric Choke p/n 350-1806
Part TypeIntake Manifold
BrandEDELBROCK
Package Height7.7
Package Width15.1
Package Length23.3
Weight19.62 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageStreet/Hi-Performance
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleDual plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeGM Vortec/Edelbrock E-TEC
Intake FinishEnduraShine
Carburetor QuantityOne
Engine Make/SizeChevy Small Block (262-400)
Intake Section IncludedComplete
Basic Operating Rpm RangeIdle-5,500
EgrWithout EGR
Rpm RangeIdle -5500
Vendor Part Number21164
Package Qty1
Package TypeEA
