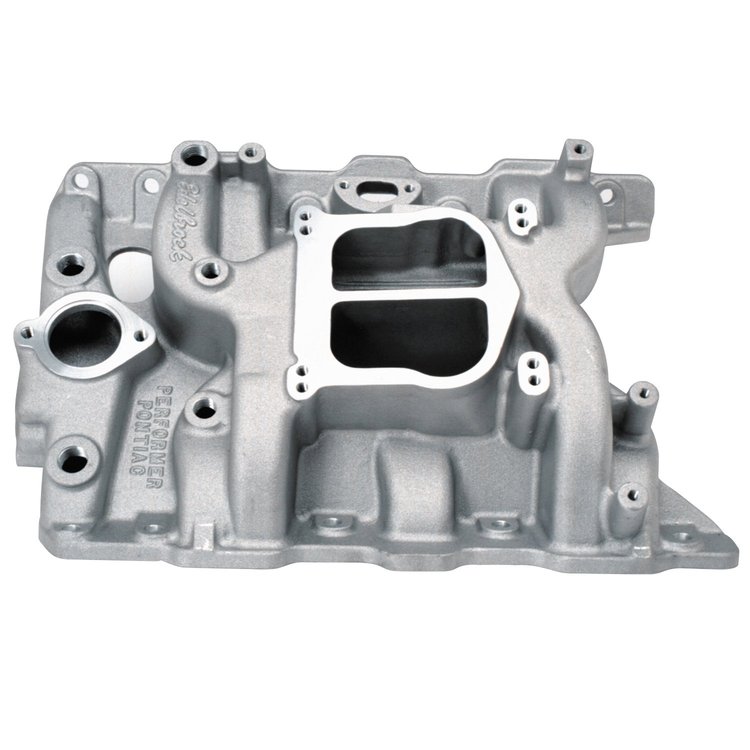

Performer Pontiac Intake Manifold
- 1965-1979 Pontiac 326-455ci
- 4-bbl Spread-Bore Carb Flange (non-EGR)
- Idle-5500 RPM Range
- Satin Finish
Designed for 1965-79 street 326-455ci Pontiac V8s (except Ram Air V and 265/301 V8's). Provides great throttle response for performance you can feel. This intake manifold is for 326, 350, 389, 400 and 455ci V8's with OEM 4-bbl. carb 1966-72 (1973 non-CA) except stock equipped EGR. (Intake manifold p/n 350-3756 is for 326, 350, 389, 400 and 455ci V8's with OEM 4-bbl carb. 1973-79 with EGR.)
Installation Notes: - Port exit dimensions: 1.06' x 1.92'
- Manifold height: (A) 5.50' , (B) 6.60' (same as stock 4-bbl)
- Carb Pad Height: 6.05' Click here to determine carburetor pad height.
- Recommended intake gasket: Edelbrock p/n 350-7280
- For 1968-71 use p/n 350-8015 throttle bracket
- For Trans-Am use OEM 4-bbl carb for Shaker Hood clearance.
- Choke plate included.
- HEI will clear
Carb Recommendations - OEM 4-bbl Carburetor
- Edelbrock Performer 600cfm Carburetor (non-EGR) Manual Choke p/n 350-1405 , Electric Choke p/n 350-1406
- Edelbrock Thunder AVS 650 cfm Carburetor Manual Choke p/n 350-1805 , Electric Choke p/n 350-1806
- Edelbrock Performer 750cfm Carburetor Manual Choke p/n 350-1407 , Electric Choke p/n 350-1411
- Edelbrock Performer 800cfm Carburetor Manual Choke p/n 350-1412 , Electric Choke p/n 350-1413
- Edelbrock Thunder AVS 800cfm Carburetor Manual Choke p/n 350-1812 , Electric Choke p/n 350-1813
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
