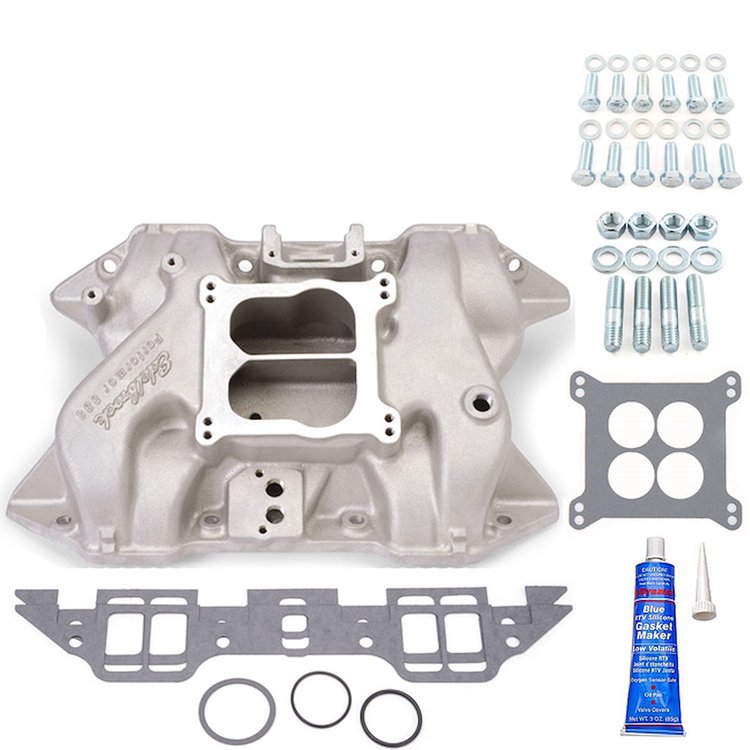

Performer 383 Intake Manifold w/Installation Kit Chrysler 361-400ci
This is a great value! These kits ensure that you'll get the job done right. Each kit includes an Edelbrock intake manifold, quality intake bolts, intake gaskets, carb gaskets, a tube of blue gasket sealer and we also throw in a set of carburetor studs.
Kit Includes
- Edelbrock Performer Intake Manifold - 350-2186
- JEGS Intake Gasket - 350-7225
- JEGS Intake Bolts - 555-83200
- JEGS Carb Stud Kit - 555-15840
- JEGS Carb Gasket - 555-16105
- JEGS Blue RTV Gasket Sealer - 555-28030
Designed for street 361-383-400ci Chrysler V8s that measure 7.75' across block. For EGR applications, This is for 400 V8s with OEM 4-bbl. carb.; 1972-78. For non-EGR applications, This is for 361-383-400 V8s with OEM 4-bbl. carb.; 1966-72 (1973 non-CA); except stock equipped EGR. May be used with OEM or aftermarket carbs.
Installation Notes: - Comes with pipe plugs to block EGR for non-EGR applications
- Port exit dimensions: 1.14' x 2.12'
- Recommended Intake Gaskets: JEGS p/n 555-210500
- Manifold height: (A) 3.65' , (B) 4.35'
- Carb Pad Height: 4.00" Click here to determine carburetor pad height.
Carburetor Recommendations: - OEM 4-bbl. carburetor
- Edelbrock Performer 600cfm Carburetor (non-EGR) Manual Choke p/n 350-1405 , Electric Choke p/n 350-1406
- Edelbrock Thunder AVS 650cfm Carburetor Manual Choke p/n 350-1805 , Electric Choke p/n 350-1806
- Edelbrock Performer 750cfm Carburetor Manual Choke p/n 350-1407 , Electric Choke p/n 350-1411
- Edelbrock Performer 800cfm Carburetor Manual Choke p/n 350-1412 , Electric Choke p/n 350-1413
- Edelbrock Thunder AVS 800cfm Carburetor Manual Choke p/n 350-1812 , Electric Choke p/n 350-1813
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
