Vehicle Info NeededEDELBROCKPART NUMBER: 350-29785

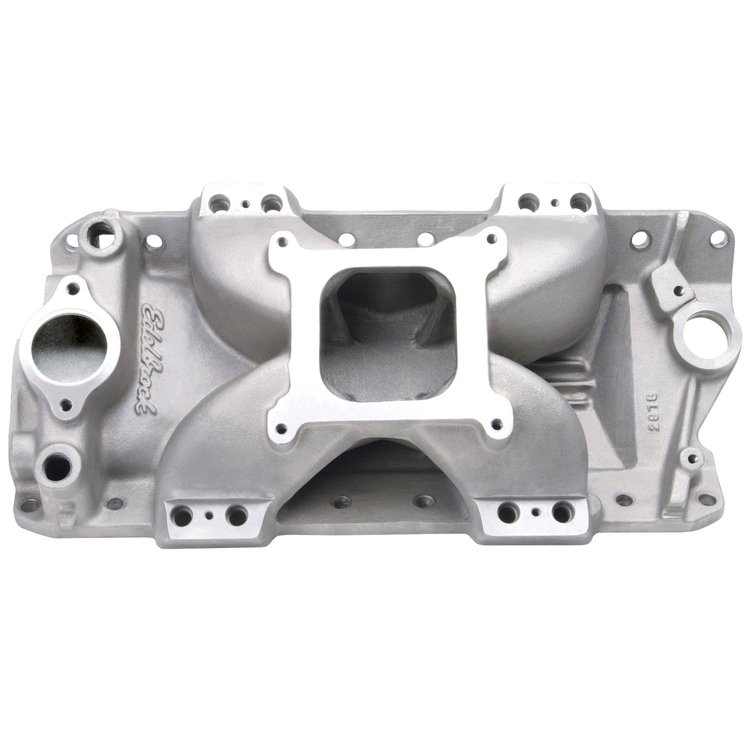

Victor E 23° EFI Intake Manifold for Small Block Chevy
$59795
Ships on 10/15/2026
Lowest Price GuaranteeSmall Block Chevy
- Small Block Chevy
- 23° Standard Port Location Cylinder Heads
- 4150-Style Square Bore Carb Flange
- 4500-8500 RPM Range
Ideal for high-rpm drag race applications, the Victor E EFI has a larger and deeper plenum than the Edelbrock p/n 350-2975. It provides maximum power in the higher rpm range for engines with standard port location iron and aluminum heads. Runners have a tapered cross-section, and plenty of material at the manifold port exit allows port matching to the small port heads used in NHRA Super Stock classes. 1' or 2' spacers can be used for performance tuning. Compatible with Standard or Pico injectors.Installation Notes: - Port exit dimensions: 1.10' x 1.90'
- Distance from bolt hole centerline to port roof 0.80'; to port floor 1.10'
- Carb pad height = 4.58' with 3° carb angle.
- Recommended intake gasket; JEGS 555-210001
- Use with Edelbrock Victor E EFI Fuel Rail Kit p/n 350-3630
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandEDELBROCK
Package Height8.1
Package Width14.9
Package Length23.3
Weight24.91 PG
Part CategoryPerformance Parts
Runners RemovableNo
Number Of CarbsNone, For Fuel Injection
Supplemental Bosses Cast-InYes
Plenum MaterialAluminum
EmissionWithout EGR
Engine Make/SizeChevy Small Block
Basic Operating Rpm Range4,500-8,500
Base FinishNatural
Rpm Range4500-8500
Injection StyleMulti-port
Supplemental Boss QuantityEight
Base MaterialAluminum
Plenum FinishNatural
Aftermarket Fuel Rail RequiredYes
Engine Block StyleStock/OEM standard deck
UsageRacing
Throttle Body IncludedNo
PositionN/A
QuantitySold individually
Cylinder Head TypeStandard
Injectors IncludedNo
Fuel Rails IncludedNo
Intake Section IncludedComplete
EgrWithout EGR
Supplemental Bosses MachinedNo
Runners IncludedNo
Vendor Part Number29785
Package Qty1
Package TypeEA
