Competition Headers 396-502 Chevy Big Block V8
InfoVehicle Info Needed
HOOKER HEADERSPART NUMBER: 520-2463-1

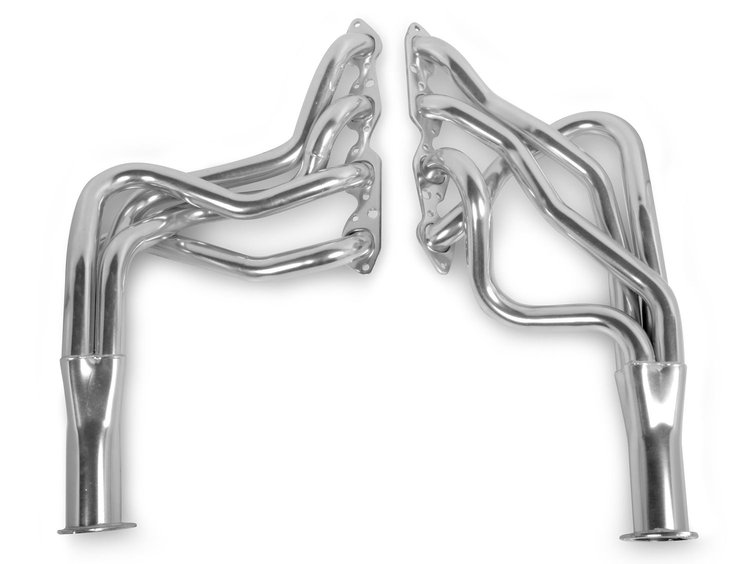

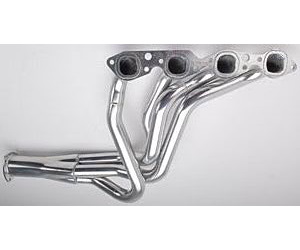

Competition Headers 396-502 Chevy Big Block V8

$76395$849.95You Save$86.00
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Chevy/GMC Truck & Van Chevy Big Block
    Competition Headers
  • 396-502 Chevy Big Block V8
  • 1969-91 Blazer, Suburban, Jimmy, Yukon 2DR 4WD
  • 1969-87 1/2, 3/4, & 1 Ton Truck 4WD
  • 1.75'' x 31'' Primary Tubes
  • 3'' x 8'' Collector
  • Metallic Ceramic Coated

    Footnotes:
  • Will not fit Turbo 400 unless transmission crossmember is set back 2' at the mount.
  • Headers will not accomodate power takeoffs.
  • Applications with oxygen sensors use reducers 555-30012.

    Accessory Compatibility:
  • Power Steering - Yes
  • Power Brakes - Yes
  • Air Conditioning - Yes, must modify factory brackets
  • Smog Pump - N/A

    Transmission Compatibility:
  • Manual Column Shifter - No
  • Manual Floor Shifter - Yes
  • Automatic Column Shifter - Yes
  • Automatic Floor Shifter - No

    Included Items Note: Bolts and Gaskets Included, Reducers required

    Port Shape: SAP.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

All Budget Headers are NOT Created Equally!
Hooker's Competition Series Headers come in your choice of finishes and are engineered to perform at a reasonable price! To let your engine really breath Hooker utilized 16 gauge (.049'' thick) steel tubing attached to long transition style collectors! Giving you a serious increase in flow over other brand headers without a loss in the backpressure most engines need to perform! After years of testing, Hooker has discovered that a machined 5/16'' header flange offers enough flex to hold the gasket tight to each exhaust port, and enough rigidity to keep everything properly tied together.

Show MoreFeatures:
  • Mandrel-bent tuned-length tubing for smooth exhaust flow and power
  • Sturdy 16 gauge steel tubing
  • Perfect seal 5/16'' machined header flanges
  • Long transition collector for improved power over standard headers
  • Comes with gaskets and bolts Reducers sold separately.
  • Available in five finishes to suit your needs (see listings below for product availability) -

    Black Painted (Part numbers do not have a suffix)

    Metallic Ceramic Coating (Part numbers have a -1 suffix)

    Stainless Steel (Part numbers have a -2 suffix)

    "Darksides" Black Ceramic Coating (Part numbers have a -3 suffix)

    Titanium Ceramic Coating (Part numbers have a -4 suffix)
Part TypeHeader
Product LineHooker Headers Competition Headers Chevy/GM Truck
BrandHOOKER HEADERS
Package Height10.0
Package Width19.75
Package Length45.25
Weight39.6 PG
Part CategoryPerformance Parts
Header FinishSilver ceramic coated
Tube DirectionDown Swept
Bolts/Studs IncludedYes
Cylinder Head Port ShapeOval
Transmission Mount IncludedNo
Gaskets IncludedYes
TunedNo
Motor Mounts IncludedNo
Primary Tube Gauge16-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Primary Tube Length31 in (787.4 mm)
QuantitySold as a pair
Header MaterialSteel
Tube MaterialMild Steel
Weld-UpNo
Collector Attachment3-bolt flange
Flange StyleStandard
Collector Diameter3 in (76.2 mm)
Part FitmentSemi Universal
Reducers IncludedNo
ApplicationAutomotive
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.75 in (44.5 mm)
Vendor Part Number2463-1HKR
Package Qty1
Package TypeEA
