Made in USA

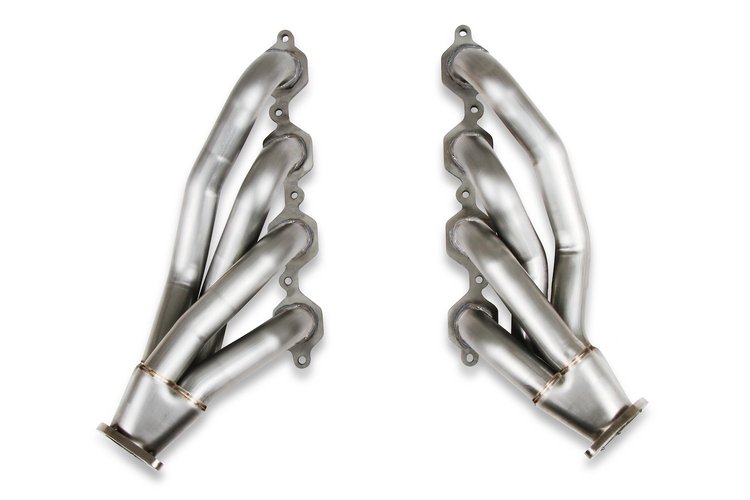

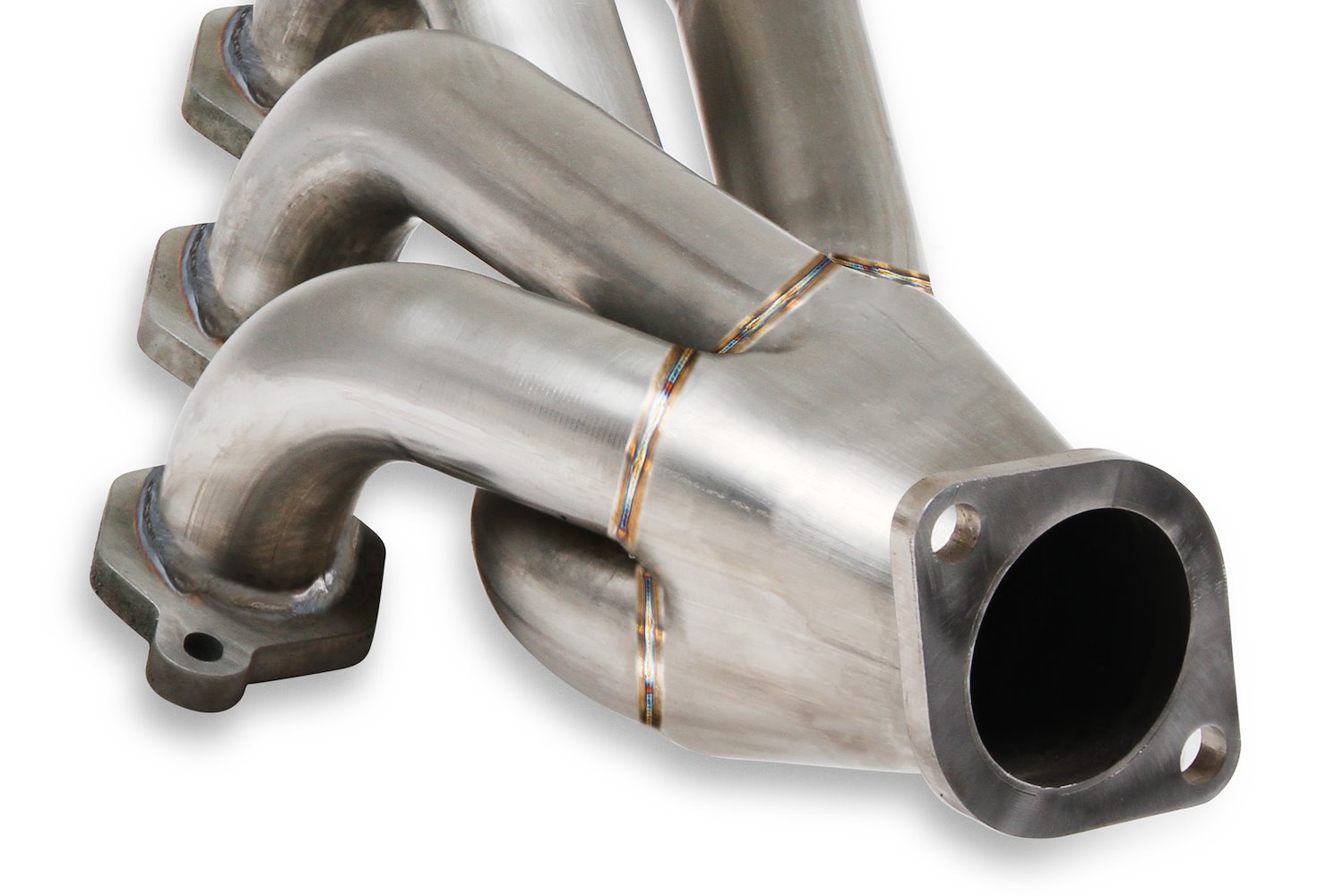

Blackheart LT Engine Swap Mid-Length Headers 1988-1998 GM C1500/K1500 Pickup Truck 2WD/4WD [304 Stainless Steel]
Product Discontinued
HOOKER HEADERSPART NUMBER: 520-BH13272

Blackheart LT Engine Swap Mid-Length Headers 1988-1998 GM C1500/K1500 Pickup Truck 2WD/4WD [304 Stainless Steel]

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM Truck
Blackheart LT Engine Swap Mid-Length Headers
  • 1988-1998 GM C1500/K1500 Pickup Truck 2WD/4WD
  • 1.750 in. Primary Tube Diameter
  • 2.500 in. Collector
  • 304 Stainless Steel
  • Natural Finish
  • Pair

    BH13272 Features:

    • Includes (12) 8 mm x 1.250 header bolts, and (2) collector gaskets
    • Suitable to support stock to mid-level engine performance levels
    • Application-specific mandrel-bend geometry for adequate spark plug wire and component clearance
    • The 304 stainless steel construction delivers strength and corrosion resistance
    • Compatible with Holley Retrofit Oil Pan 510-302-20
    • Compatible with GM TH350, TH400/3L80, 700R4, 4L60/4L70, 4L80/4L85, 6L80, and 6L90 automatic transmissions - For TH350, TH400/3L80, 700R4, and 4L80/4L85 transmissions, trimming to the bellhousing is required for clearance
    • Compatible with stock 1988-1994 mechanical transmission shift linkage and 1995-1998 transmission shift cable
    • Compatible with T56 Magnum manual transmissions (internal hydraulic release bearing only) in 2WD applications

    Notes:

    • Designed to be installed with Hooker Blackheart LS engine mounting components and exhaust systems for this specific application - Installing these headers with any other type or combination of engine and transmission mounting components may cause component clearance issues
    • Will NOT fit 1999-2007 GM Silverado/Sierra (GMT800) Series Pickup Trucks

    Emissions:

    • This product is engineered to facilitate the installation of a later model, emissions-friendly engine into a vintage/classic vehicle. Consumers are responsible for complying with laws prohibiting tampering, and for ensuring that modified vehicles are operated in a manner that complies with applicable Federal guidelines
    • Specially-Designed Engine Swap Headers

      Hooker Blackheart GM LT Swap Headers, when used with Hooker brands LT engine and transmission accessories, will take the guesswork out of putting the GM LT into a classic car or truck.

    Part TypeHeader
    Product LineHooker Blackheart GM LT Engine Swap Headers
    BrandHOOKER HEADERS
    Package Height1.0
    Package Width6.37
    Package Length6.37
    Weight24.0 PG
    Part CategoryPerformance Parts
    Header FinishNatural
    Mandrel-BentYes
    QuantitySold as set of 2
    Bolts/Studs IncludedYes
    Engine Make/SizeGM LT
    Muffler IncludedNo
    Header Material304 Stainless steel
    Gaskets IncludedNo
    Collector Attachment2-bolt flange
    Carb CompliantNo
    Collector Diameter2.5 in (63.5 mm)
    Reducers IncludedNo
    Application1988-1998 GM C1500/K1500 2WD/4WD
    Header StyleMid-length
    Primary Tube Diameter1.75 in (44.5 mm)
    Vendor Part NumberBH13272
    Package Qty1
    Package TypeEA
