Vehicle Info NeededICT BILLETPART NUMBER: 335-551136-3

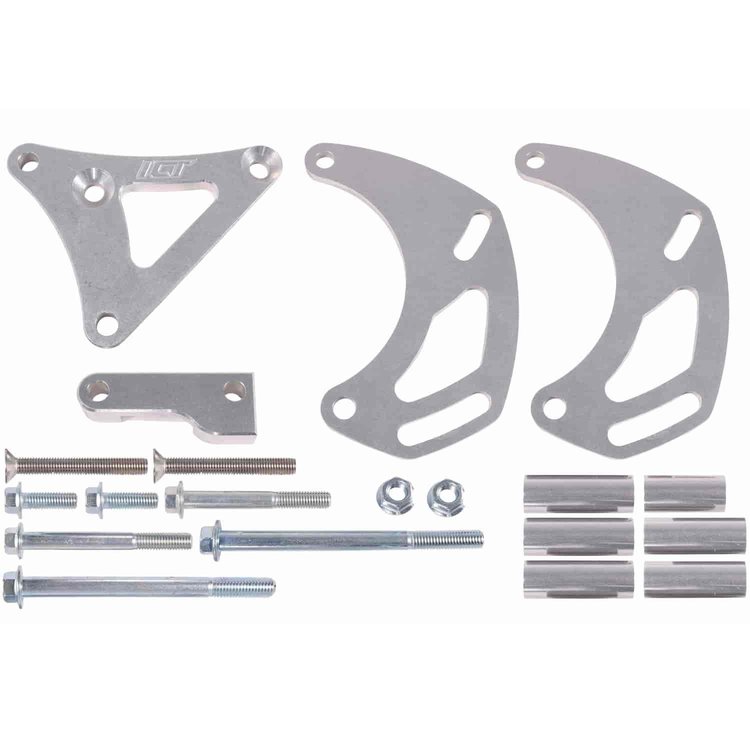

LS HD Alternator-Only Bracket Kit for Remote-Mount Water Pump
$20000
Ships on 09/15/2026
Lowest Price GuaranteeAlternator Bracket Kits
LS HD Alternator Only Bracket Kt LS Truck Crank Pulley Remote-Mount Water Pump Billet Aluminum Passenger Side Mount Includes: Alternator Bracket & Mounting Hardware
Fitment Notes:
- Designed to clear electric & remote-mount water pumps

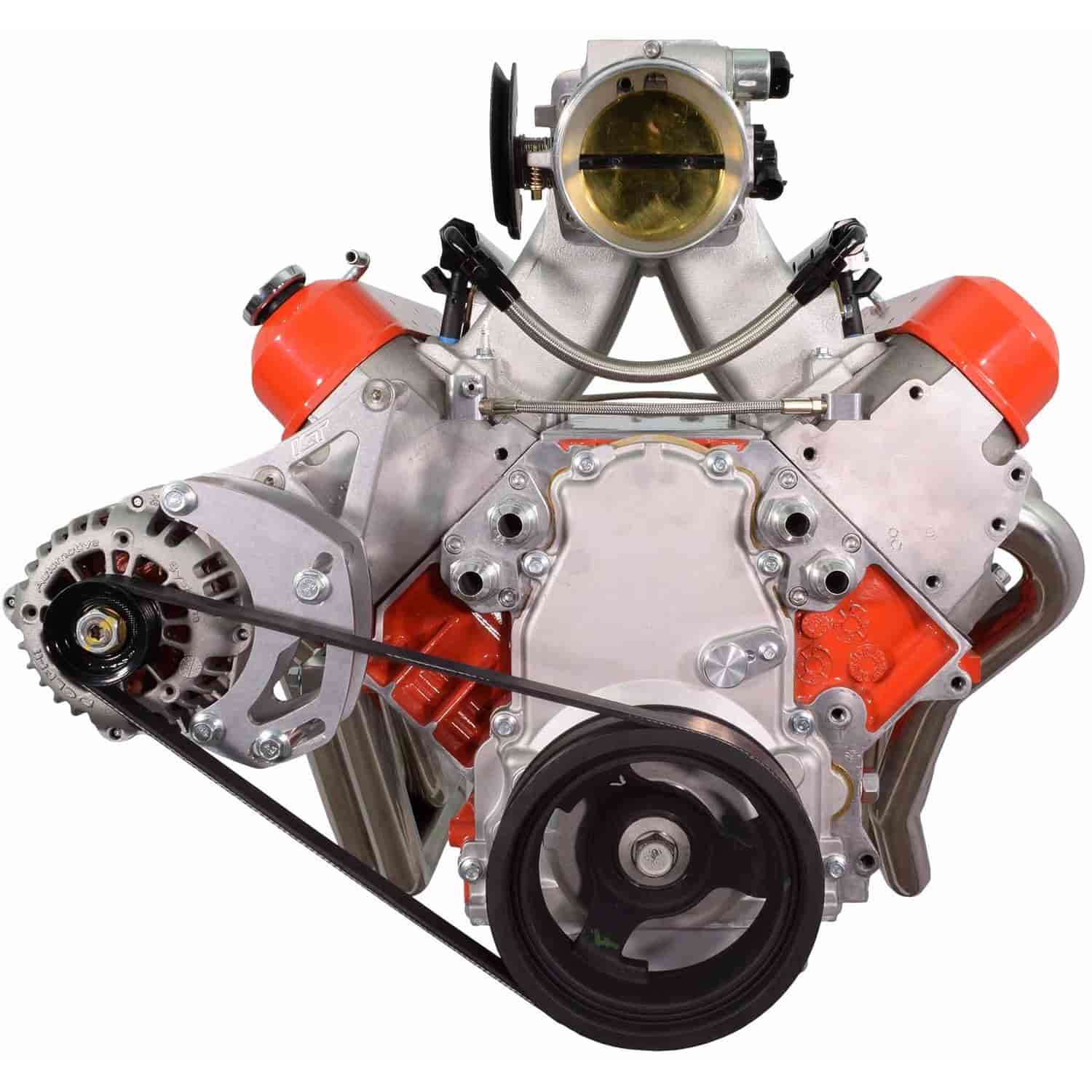

- The alternator is placed next to the passenger-side cylinder head
- Requires Truck/SUV or 5th Gen Camaro crank pulley (12634105)
- Will NOT fit alternators with bolt patterns from Corvette, CTSV, G8, or 2010-up Camaro. Will fit all other LS-powered vehicle alternators with any amperage
Belt Lengths:
- 43.600 in. when used with 105amp alternator
- 44.300 in. when used with 140/160 amp alternator
Part TypeAccessory Drive Belt Kit
BrandICT BILLET
Package Height2.0
Package Width6.0
Package Length8.0
Weight2.62 PG
Part CategoryPerformance Parts
Hardware IncludedYes
Crankshaft Nose Cover IncludedNo
Water Pump Pulley IncludedNo
Alternator Brackets IncludedYes
Idler Brackets IncludedNo
Crankshaft Pulley IncludedNo
QuantitySold as a kit
Idler/Tensioner IncludedNo
Air Conditioning Bracket IncludedNo
Power Steering Brackets IncludedNo
Air Conditioning Cover IncludedNo
Air Conditioning Pulley IncludedNo
Power Steering Pulley IncludedNo
Alternator Fan IncludedNo
Alternator Pulley IncludedNo
Alternator Nose Cover IncludedNo
Idler Cover IncludedNo
Part FitmentSemi Universal
Bracket FinishNatural
Bracket MaterialBillet aluminum
Water Pump Nose Cone IncludedNo
Package Qty1
Package TypeEA
