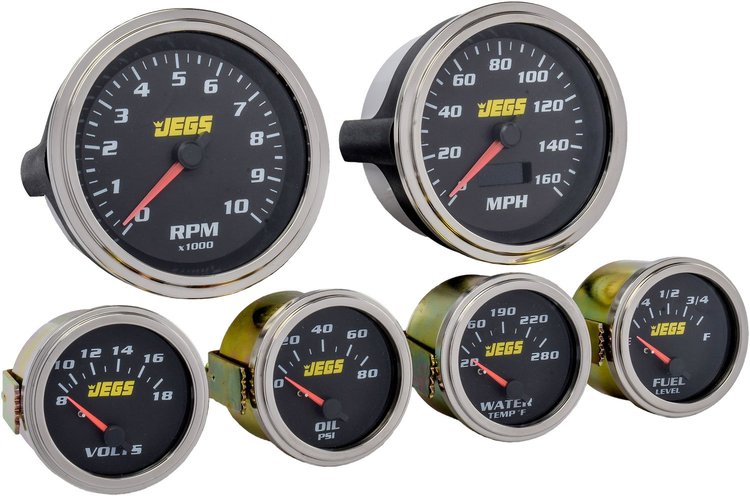

6-Gauge Set, Black Analog Face [3 3/8 in. Dia. Speedometer & Tachometer]

Name: 6-Gauge Set, Black Analog Face [3 3/8 in. Dia. Speedometer & Tachometer]
Brand: JEGS
SKU: 555-41290
Price: 382.99 USD
Availability: InStock

^$382⁹⁹$404.99You Save$22.00

7 left in stock

Ships Today

Lowest Price Guarantee

Black Face Gauge Sets

6-Gauge Set

Electrical

Black Analog Face

White Numbers

Red Pointer

LED Lighting

Gauges Included:

3 3/8 in. Dia. - Speedometer & Tachometer
2 1/16 in. Dia. - Fuel Level, Oil Pressure, Voltmeter & Water Temperature

JEGS 555-41290 6-Gauge Set Features:
- Black analog face with white numbers and stainless steel bezels
- Includes the following: 3-3/8" programmable speedometer (0-160 mph), 3-3/8" tachometer (0-10 rpm), 2-1/16" voltmeter (8-18 volts), 2-1/16" water temperature (120°-280° f), 2-1/16" oil pressure (0-80 psi), 2-1/16" fuel level (0-90 ohms)
- Led through-the-dial lighting for better visibility
- Electric sending units for easier routing and connections
- All Electrical 12-volt Gauges
- High-speed stepper motor movement for accurate and reliable readings
- LED through-the-dial lighting creates exceptional illumination
- Red illuminated pointer soft on the eyes for easy reading
- 270-Degree full sweep movement on speedometer and tachometer for excellent readability
- Polished Stainless Steel Bezels
- Programmable speedometer with odometer and trip meter calibration
- JEGS electronic speedometers are designed to work with both hall effect senders and magnetic pickup sensors (See instructions for specific details)
Includes:
- 3 3/8 in. Diameter Programmable Speedometer (0-160 MPH)
- 3 3/8 in. Diameter Tachometer (0-10,000 RPM) 0-10 Reading
- 2 1/16 in, Diameter Fuel Level Gauge (0-90 ohms)
- 2 1/16 in. Diameter Electrical Oil Pressure Gauge (0-80 PSI)
- 2 1/16 in. Diameter Voltmeter (8-18 Volts)
- 2 1/16 in. Diameter Electrical Water Temperature Gauge (120-280 Degree F)
- (4) Light bulb sockets with LED bulbs
- Oil Pressure Sending Unit
- Water Temperature Sending Unit
- Remote Mount Speedometer Calibration Button
- (11) 20 Gauge Electrical Connectors
- Speedometer Sender sold separately. We recommend JEGS 555-41610, 555-41611, or 555-41612
Looking for a Classic Look? We also offer JEGS 555-41448 Retro Muscle Car 6-Gauge Set

Customize The Dash In Your Ride With Quality Gauge Sets

JEGS 6-Gauge Sets are the perfect solution when building a muscle car or street machine, and you don't want to use factory-style gauges but are looking for a customized look. These electrical gauge sets are designed to install in any flat dash panel or fabricated mount. Each set includes 3 3/8 in. or 5-inch diameter speedometer & tachometer, 2 1/16 in. diameter fuel level, oil pressure, voltmeter, and water temperature gauges. Gauge sets are available in a black face with white numbers, silver face with black numbers, or white face with black numbers, and come with a red pointer and polished stainless steel bezel.

Gauges also sold individually:
JEGS 3 3/8 in. Diameter Tachometers & Speedometers
JEGS 5 in. Diameter Tachometers & Speedometers
JEGS 2-1/16 in. Diameter Gauges

Looking for a Classic Look? We also offer JEGS Retro Muscle Car Gauges including a 6-Gauge Set and individual gauges.

Part TypeGauge

Product LineJEGS 6-Gauge Sets

BrandJEGS

Package Height4.2

Package Width9.1

Package Length11.9

Weight2.95 PG

Part CategoryPerformance Parts

Liquid-FilledNo

Gauge Size (Mm)52.39 diameter, 85.73 diameter
