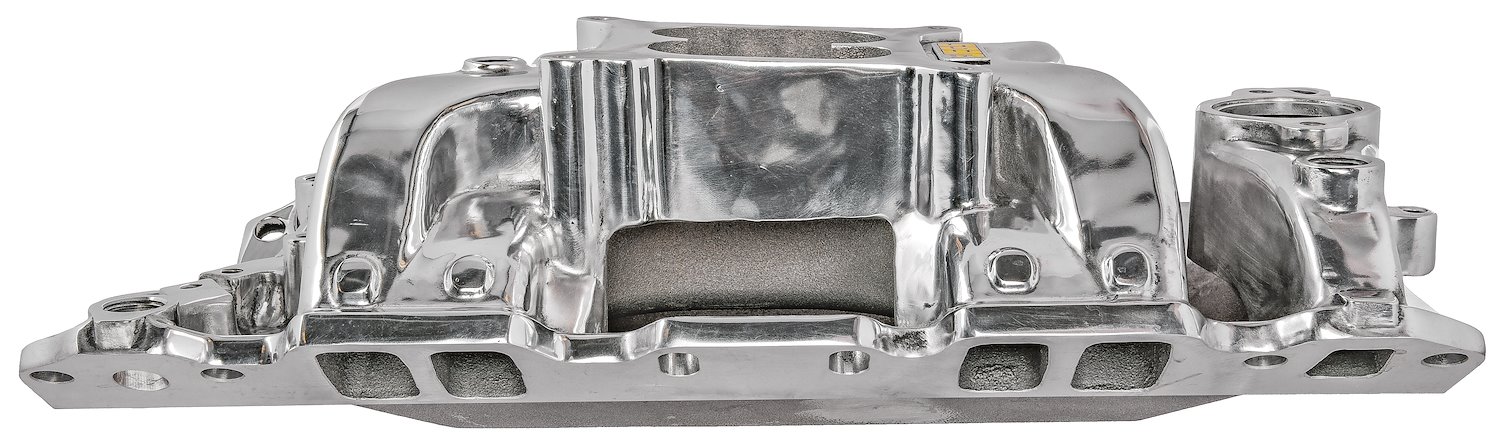

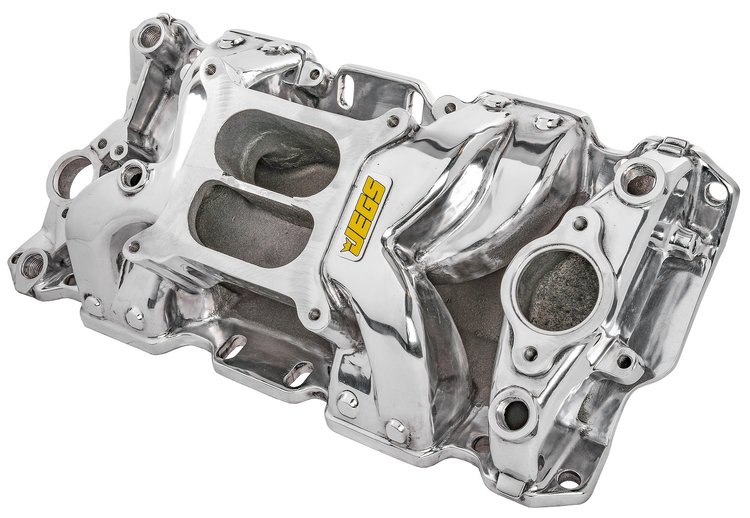

Cool Gap Intake Manifold for 1955-1996 Small Block Chevy, Dual Plane [Polished]

Name: Cool Gap Intake Manifold for 1955-1996 Small Block Chevy, Dual Plane [Polished]
Brand: JEGS
SKU: 555-513027
Price: 459.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy

Cool Gap Intake Manifold

1955-1996 Small Block Chevy

Dual Plane

4-BBL Square Bore 4150/4160 Mounting Flange

(Non-EGR)

RPM Range: 1500-6500

Cast Aluminum

Polished Finish

JEGS 513027 Intake Manifold Features:

Fits 1955-1996 Small Block Chevy 262, 265, 267, 283, 302, 305, 307, 327, 350, and 400 V8 Engines
Dual Plane design for optimum fuel distribution
Accepts 4150/4160 4-BBL square bore carburetors
Cool Gap design keeps hot engine oil away from intake runners resulting in a cooler, denser charge for more horsepower, torque, and efficiency
Designed for 23-degree heads with standard port location
This Manifold has a dual center bolt pattern and includes adapter bushings for 1955-1986 and 1987-1995 heads
Will not fit Chevy Bowtie Heads
(8) Intake runner bosses cast in for nitrous or fuel injector ports
Port exit dimensions: 1.185 in. W x 2 in. H
Estimated runner length - Shortest: 5.00 in.
Estimated runner length - Longest: 6.250 in.
Manifold height: Front (A) 4.375 in., Rear (B) 5.250 in. ( A + B divided by 2 = 4.8125 in.)
Click here to determine the carburetor pad height
2 Front and Rear 1/2 in. NPT water outlet ports for additional cooling
1 Rear 3/8 NPT vacuum port
Provisions for dual distributor hold-downs
Accepts late-model choke, water neck, AC, alternator, and HEI
No provision for divorced or heated choke

Additional Recommended Items (Sold Separately):

Stock/stamped steel valve covers may require 3/16 in. (or thicker) valve cover gaskets. We recommend 555-21100, 555-210075, or 555-210070 for adequate runner clearance.
Recommended Intake Gasket 555-210002
Front to Rear Coolant Fittings and Hose
- (2) JEGS Black 90-degree 1/2 in. NPT to -8 AN Fittings - 555-110149
- (2) JEGS Black Straight 1/2 in. NPT to 8 AN Fittings - 555-110109
- (1) JEGS Black Pro-Flo 350 -8 AN Braided Hose, 3 ft. - 555-110920
- (1) JEGS Black Straight -8 AN Max Flow Hose End - 555-110002
- (1) JEGS Black 45-degree -8 AN Max Flow Swivel Hose End - 555-110012
- (2) JEGS Black 90-degree -8 AN Max Flow Swivel Hose Ends - 555-110022
Carburetor Fuel Inlet Lines & Fittings
Carburetor Spacers
Fuel Filters
Carburetor Linkage, Choke Kits & Components

JEGS Carb Recommendations/Notes
Carburetors
		570 CFM	670 CFM	770 CFM
		Up to 300 HP	300 to 400 HP	400 to 500 HP
Manual Choke		510-0-81570	510-0-81670	510-0-81770
Electric Choke		510-0-80570	510-0-80670	510-0-80770
Carburetor Studs
555-15840	1-1/2" Studs	Suggested for carb and gasket only
555-15841	2" Studs	Suggested for carb and 1/2" spacer
555-15842	2-1/2" Studs	Suggested for carb and 1" spacer
555-15846	3-1/2" Studs	Suggested for carb and 2" spacer
Carburetor Base Gaskets
555-16100	Open (Square Flange)
555-16105	4-Hole (Square Flange)
Intake Manifold Bolts
555-83200	Small Block Chevy - Standard

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Cooler Intake Temperature Makes Horsepower

JEGS Cool Gap dual-plane intake manifold is more efficient and creates more horsepower than standard dual-plane models. This manifold's unique air space design under the plenum and runners allow airflow to pull off excess heat, decreasing the intake temperature and providing better fuel atomization for improved performance. The 4150/4160 carb flange accepts most non-EGR 4-bbl square bore carburetors; this cast aluminum manifold is available in satin and polished finishes.

Part TypeIntake Manifold

Product LineJEGS Cool Gap Performance Intake Manifolds

BrandJEGS

Package Height7.1

Package Width11.4

Package Length23.9

Weight17.05 PG

Part CategoryPerformance Parts

Engine Block StyleStock/OEM standard deck

UsageStreet/Hi-Performance

Intake MaterialCast Aluminum

Intake StyleDual Plane (Air Gap)
