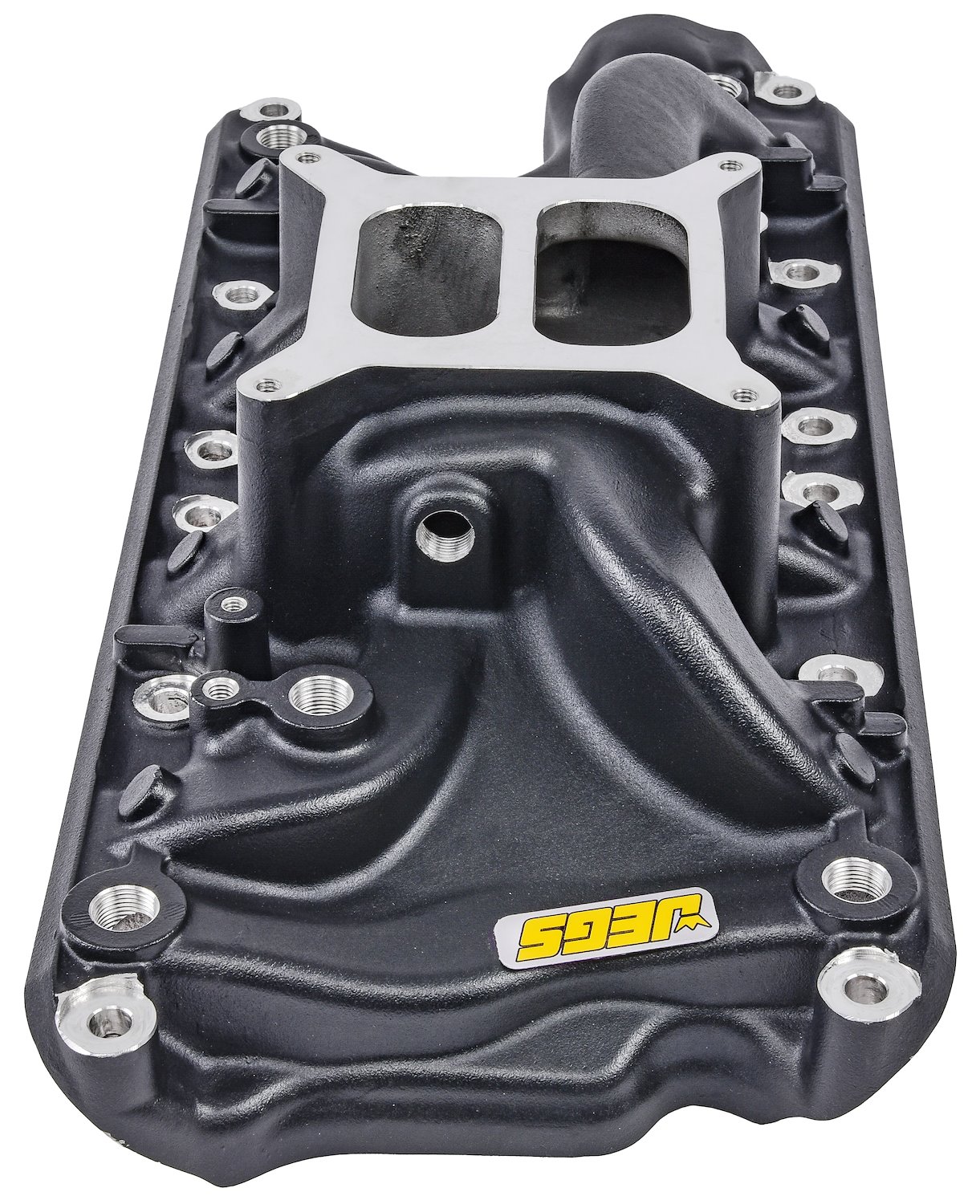

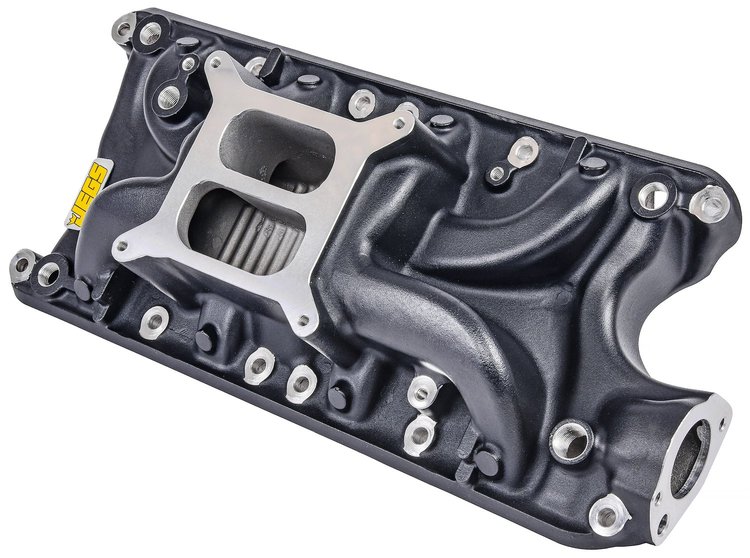

Intake Manifold for 1962-1985 Small Block Ford 260, 289 & 302 (Except Boss 302), Dual Plane [Black]

Name: Intake Manifold for 1962-1985 Small Block Ford 260, 289 & 302 (Except Boss 302), Dual Plane [Black]
Brand: JEGS
SKU: 555-513083
Price: 209.99 USD
Availability: InStock

^$209⁹⁹$230.99You Save$21.00

More than 10 available

Ships Tomorrow

Lowest Price Guarantee

Small Block Ford Intake Manifolds

Intake Manifold

1962-1985 Small Block Ford 260, 289 & 302 (Except Boss 302)

Dual Plane

4-BBL Square Bore 4150/4160 Mounting Flange

Non-EGR

RPM Range: 1500-6500

Cast Aluminum

Black Powder Coat Finish

JEGS 513083 Dual Plane Intake Manifold Features:

Dual Plane design for optimum fuel distribution
Accepts 4150/4160 4-BBL square bore carburetors
(8) Intake runner bosses cast in for nitrous or fuel injector ports
Port exit dimensions: 1.037 in. W x 1.960 in. H
Estimated runner length - Shortest: 5.00 in.
Estimated runner length - Longest: 7 in.
Manifold height: Front (A) 4.750 in., Rear (B) 5.500 in. (A + B divided by 2 = 5.125 in. Carburetor Pad Height)
Click here to determine the carburetor pad height
Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with JEGS Throttle Cable Bracket & Springs p/n 555-157050
This Intake manifold will not fit 255ci engines
1 Front 1/2 in. NPT port for a water temperature gauge
1 Front & 2 Rear 3/8 in. NPT water outlet ports for additional cooling lines
1 Rear 3/8 NPT vacuum port
No provision for divorced or heated choke
Intake gasket port matching is recommended for optimum performance

Additional Recommended Items (Sold Separately):

Stock/stamped steel valve covers may require 3/16 in. (or thicker) valve cover gaskets. We recommend 555-21120 or 555-210270 for adequate runner clearance.
Recommended Intake Gasket 555-210200
Front to Rear Coolant Fittings and Hose
- JEGS Black 90-degree 3/8 in. NPT to -8 AN Fittings - 555-110147
- JEGS Black Straight 3/8 in. NPT to 8 AN Fittings - 555-110107
- JEGS Black 90-degree 1/2 in. NPT to -8 AN Fittings - 555-110149
- JEGS Black Straight 1/2 in. NPT to 8 AN Fittings - 555-110109
- JEGS Black Pro-Flo 350 -8 AN Braided Hose, 3 ft. - 555-110920
- JEGS Black Straight -8 AN Max Flow Hose End - 555-110002
- JEGS Black 45-degree -8 AN Max Flow Swivel Hose End - 555-110012
- JEGS Black 90-degree -8 AN Max Flow Swivel Hose Ends - 555-110022
Carburetor Fuel Inlet Lines & Fittings
Carburetor Spacers
Fuel Filters
Carburetor Linkage, Choke Kits & Components

JEGS Carb Recommendations/Notes
Carburetors
		570 CFM	670 CFM	770 CFM
		Up to 300 HP	300 to 400 HP	400 to 500 HP
Manual Choke		510-0-81570	510-0-81670	510-0-81770
Electric Choke		510-0-80570	510-0-80670	510-0-80770
Carburetor Studs
555-15840	1-1/2" Studs	Suggested for carb and gasket only
555-15841	2" Studs	Suggested for carb and 1/2" spacer
555-15842	2-1/2" Studs	Suggested for carb and 1" spacer
555-15846	3-1/2" Studs	Suggested for carb and 2" spacer
Carburetor Base Gaskets
555-16100	Open (Square Flange)
555-16105	4-Hole (Square Flange)
Intake Manifold Bolts
555-83210	Small Block Ford - Standard

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Dual-Plane Performance Intake

JEGS Champion Series 331 Dual Plane Aluminum Intake Manifolds feature the latest machining techniques to ensure the highest-quality performance. The cast aluminum intake manifold construction yields a lighter, more consistent casting for smoother intake runners, optimal fuel atomization, and improved fuel & air distribution to the cylinders—resulting in more power!

Part TypeIntake Manifold

Product LineJEGS Champion Series 331 Performance Dual Plane Aluminum Intake Manifolds

BrandJEGS

Package Height5.8

Package Width10.6

Package Length23.1

Weight17.59 PG

Part CategoryPerformance Parts

Engine Block StyleStock/OEM standard deck

UsageStreet/Hi-Performance

Intake MaterialCast Aluminum

Intake StyleDual plane
