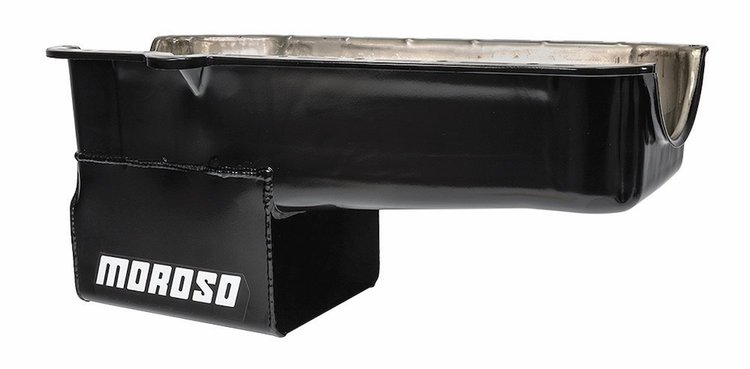

Street/Strip Oil Pan 1980-85 Small Block Chevy
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20165

Street/Strip Oil Pan 1980-85 Small Block Chevy

$28199
ShippingShips on Sep 04, 2026
Lowest PriceLowest Price Guarantee

Small Block Chevy
Street/Strip Oil Pan
  • 1980-85 Small Block Chevy Passenger-Side Dipstick
  • With 2-piece rear main seal
  • Deep Sump
  • Wet Sump 7-quart capacity
  • 9.5" Depth
  • Black Finish

    • Fits most chassis (except 1962-67 Chevy II, V8 Vega and Monza)
    • Accepts up to 4.125 in. stroke with most steel rods
    • Fits 4 Bolt Main Caps Including Front and Rear
    • Trap door baffle for improved oil control
    • Reduces oil temperature
    • Compatible with most starter/flywheel combinations

    Note: Oil pan capacities do not include oil filter capacity

    Recommended Pickups:

    • Part TypeOil Pan
    BrandMOROSO
    Package Height11.0
    Package Width11.0
    Package Length26.5
    Weight10.95 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity7 quarts
    Hardware IncludedNo
    Dipstick ProvisionYes
    BaffledYes
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    QuantitySold individually
    Oil Pan FinishBlack
    Oil Pan MaterialSteel
    Maximum Stroke With Oe Rod3.8 in (96.52 mm)
    Gaskets IncludedNo
    Oil Pan Depth9.5 in (241.3 mm)
    Rear Main Seal Style2-piece
    Sump LocationRear
    Crank Scraper IncludedNo
    Windage Tray IncludedNo
    Dipstick LocationPassenger side
    Part FitmentDirect Fit
    Kicked OutNo
    Stroker ClearancedYes
    Vendor Part Number20165
    Package Qty1
    Package TypeEA
