20412 Street/Strip Oil Pan Big Block Chevy Mark IV
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20412

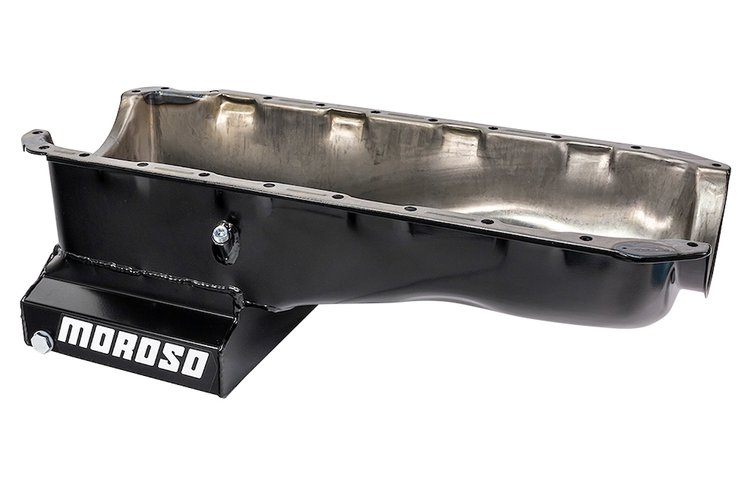

20412 Street/Strip Oil Pan Big Block Chevy Mark IV

$39207
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Big Block Chevy
Street/Strip Oil Pan
  • Big Block Chevy Mark IV
  • Kicked-Out Sump
  • Wet Sump 6-quart capacity
  • 8" Depth
  • Black Finish

    • Fits most chassis except 1962-67 Chevy II, V8 Vega/Monza, and 1955-57 Chevy
    • Notched pan rails accept strokes up to 4.250 in. w/ steel rods, 4.090 in. w/ aluminum rods
    • Clears rear steer center links in GM A-Body cars
    • Rear sump has been shortened 1.25" for additional cross-member clearance
    • Trap door baffling for improved oil control
    • Compatible with most starter/flywheel combinations

    Note: Oil pan capacities do not include oil filter capacity

    Recommended Pickups:

    • 710-24440 -- Fits Moroso Big Block Chevy Race pump 710-22150, 710-22160 or 710-22162 and Standard or Hi-Volume Stock Oil Pumps
    • 710-24441 -- Fits Same Pumps as above but is offset to middle of sump for more consistent oil pressure
    • Part TypeOil Pan
    BrandMOROSO
    Package Height11.3
    Package Width12.1
    Package Length26.5
    Weight13.65 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity6 quarts
    Hardware IncludedNo
    Dipstick ProvisionYes
    BaffledYes
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    QuantitySold individually
    Oil Pan FinishBlack
    Kickout PositionDriver and passenger side
    Oil Pan MaterialSteel
    Maximum Stroke With Oe Rod4.25 in (107.95 mm)
    Gaskets IncludedNo
    Oil Pan Depth8 in (203.2 mm)
    Rear Main Seal Style2-piece
    Sump LocationRear
    Crank Scraper IncludedNo
    Windage Tray IncludedNo
    Dipstick LocationPassenger side
    Part FitmentDirect Fit
    Kicked OutYes
    Stroker ClearancedYes
    Vendor Part Number20412
    Package Qty1
    Package TypeEA
