Vehicle Info NeededMOROSOPART NUMBER: 710-20416

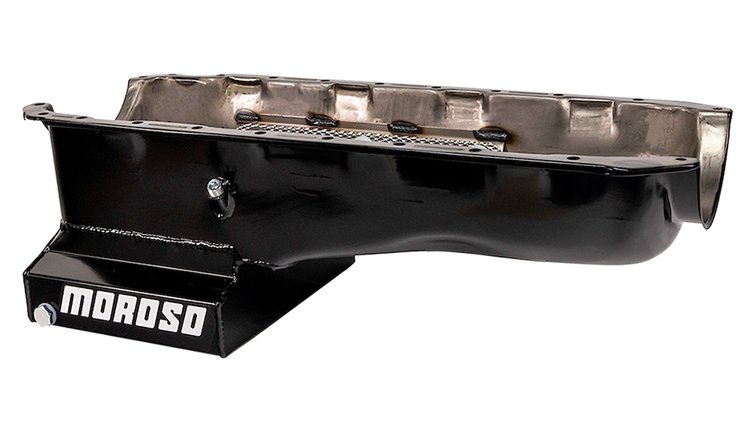

20416 Street/Strip Oil Pan Big Block Chevy Mark IV
$47199
2 left in stock
Ships Today
Lowest Price GuaranteeBig Block Chevy
Street/Strip Oil PanBig Block Chevy Mark IV Kicked-Out Sump Wet Sump 6-quart capacity 8" Depth Black Finish
- Fits most chassis except 1962-67 Chevy II, V8 Vega/Monza, and 1955-57 Chevy
- Notched pan rails accept strokes up to 4.250 in. w/ steel rods, 4.090 in. w/ aluminum rods
- Clears rear steer center links in GM A-Body cars
- Trap door baffling for improved oil control
- Compatible with most starter/flywheel combinations
Note: Oil pan capacities do not include oil filter capacity
Recommended Pickups:
- 710-24440 -- Fits Moroso Big Block Chevy Race pump 710-22149, 710-22150, 710-22159, 710-22160 or 710-22162 and Standard or Hi-Volume Stock Oil Pumps
- 710-24441 -- Fits Moroso Big Block Chevy Race pump 710-22149, 710-22150, 710-22159, 710-22160 or 710-22162 and Standard or Hi-Volume Stock Oil Pumps. Offset to middle of sump for more consistent oil pressure
Part TypeOil Pan
BrandMOROSO
Package Height11.4
Package Width12.9
Package Length27.9
Weight16.25 PG
Part CategoryPerformance Parts
Maximum Stroke With Oe Rod4.25 in (107.95 mm)
Oil Pan Depth8 in (203.2 mm)
Part FitmentDirect Fit
Vendor Part Number20416
Package Qty1
Package TypeEA
